Sheet 05.722

PR Lighting · Hybrid fixtures

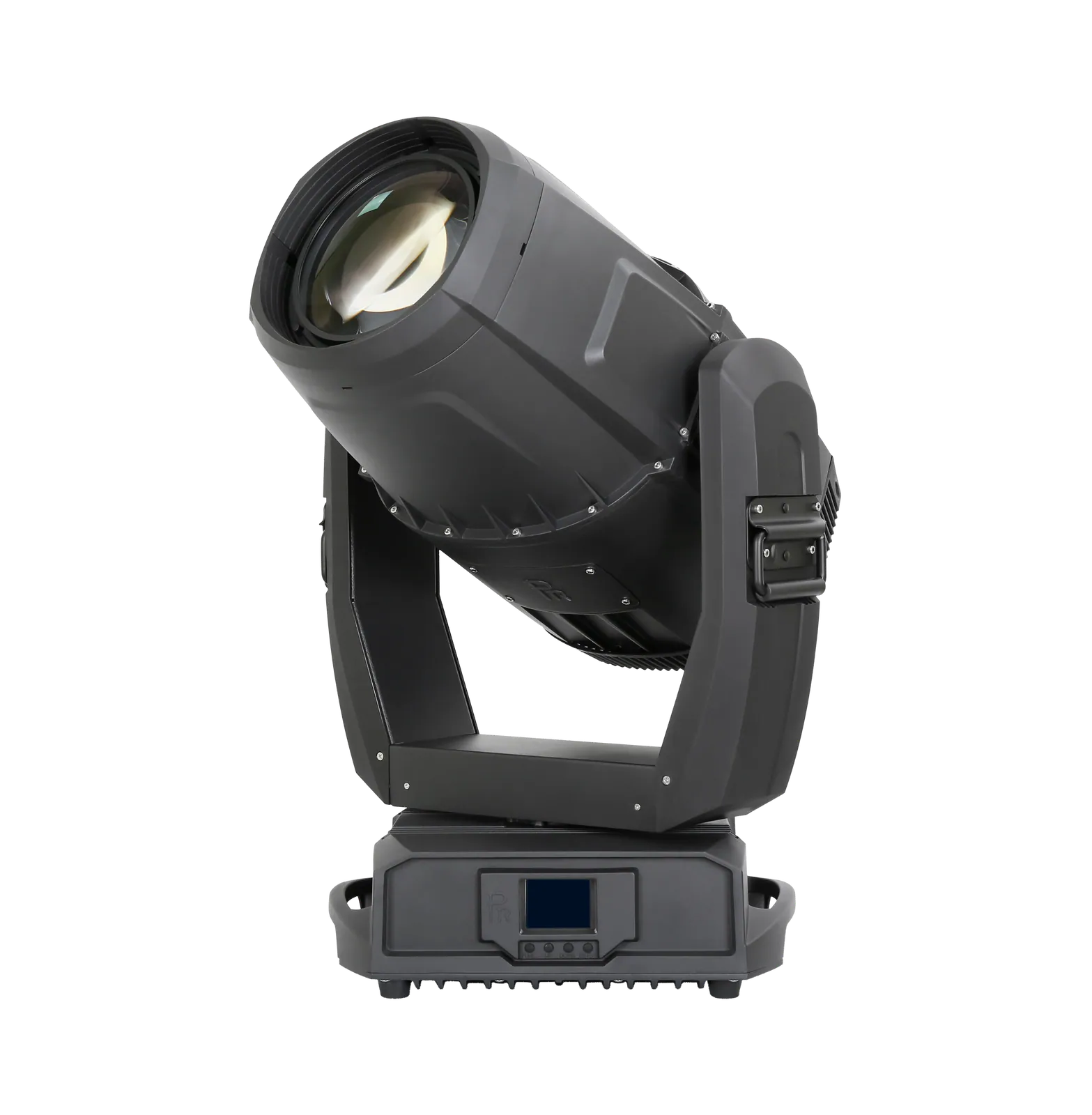

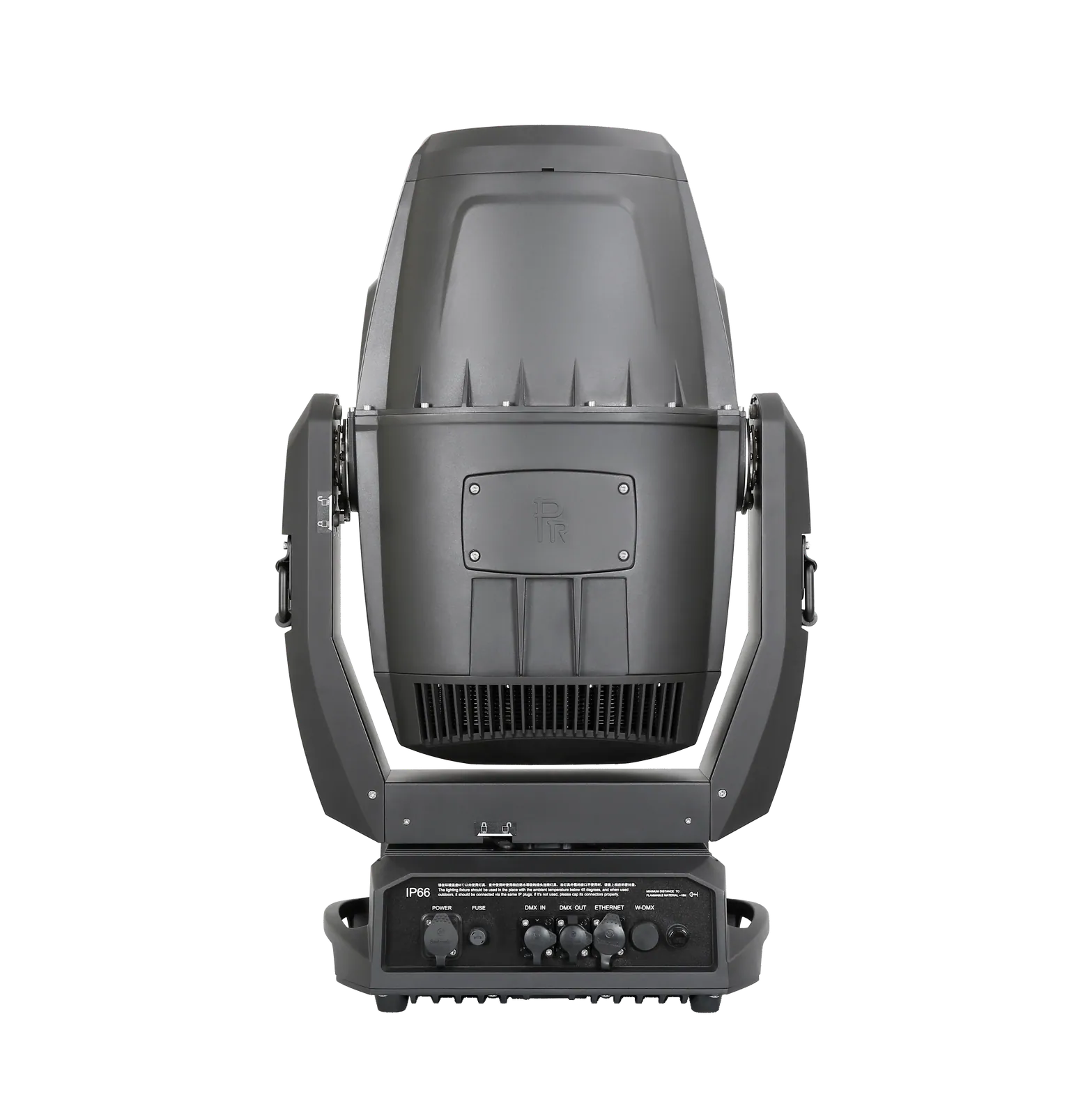

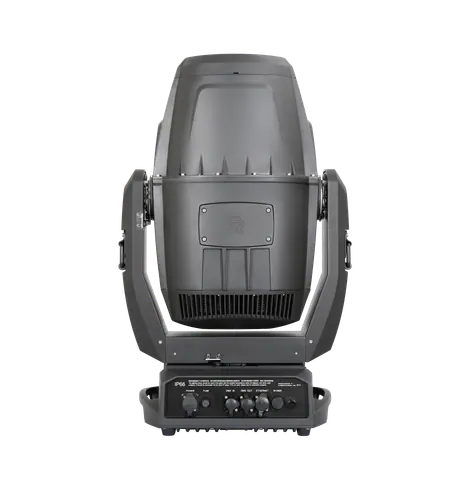

AQUA 580 BWS

ModelPR-2597

Light source: PHILIPS MSD Platinum 500L Flex (550W)
Power consumption: 800W @ 220V
Power supply: 100V~240V AC,50/60Hz
Colour temperature: 7800K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:06

PR Lighting AQUA 580 BWS2:06

02SpecificationManufacturer's data · 17 groups · 38 values

What this product is, in numbers.

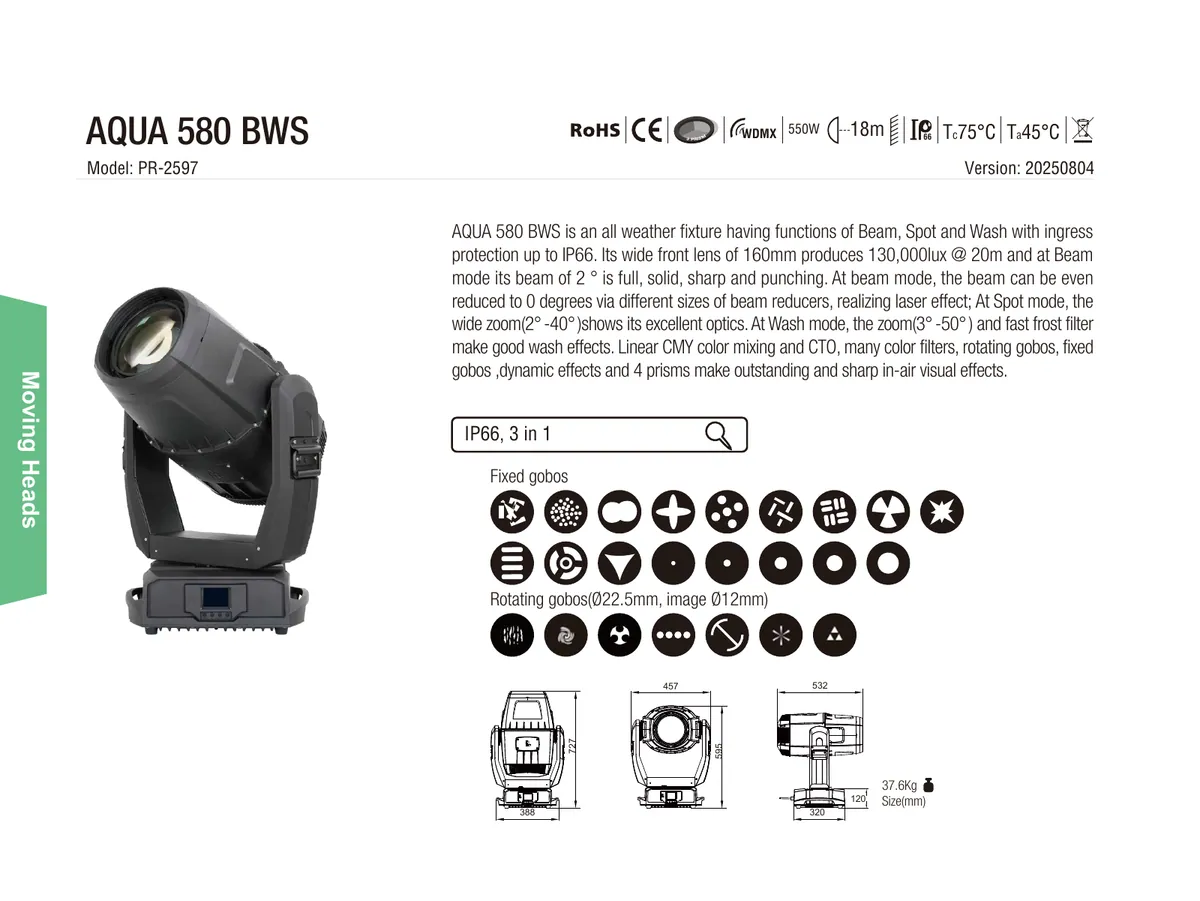

PDFUser manualEN · 2 pages · 641 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01ELECTRIC PARAMETERS3

Input voltages: 100V~240V AC,50/60Hz
Input Power: 800W @ 220V
Power factor: PF〉0.9

02LAMP SPECIFICATIONS4

Lamp: PHILIPS MSD Platinum 500L Flex (550W)
Color Temperature: 7800K
Manufacturers Rated Lamp Life: 1500hours
Energy Save Mode: 4000hours

03INDEPENDENT CTO SYSTEM1

Linear CTO system

04PRISM1

4 pcs of prisms which can be overlapped (8 facet circular prism+ 4facet linear prism) (9 facet circular prism+ gradient prism) And other optional prisms

05EFFECT WHEEL1

1 graphic effect wheel, bi-directional rotation with variable speeds and can be overlapped with fixed gobo wheel and rotating gobo wheel

06FROST1

1pc independent frost filter

Show the full specificationHide the rest of the specification11 more groups · 27 values

07FOCUS1

DMX linear focus

08ZOOM1

DMX linear zoom

09DIMMER/STROBE1

0-100% Linearly adjustable/ Double shutter blades, 0.3~25 F.P.S

10HEAD MOVEMENT1

Pan 540º, Tilt 270º with auto position correction

11BEAM ANGLE3

Beam Mode: 0°-- 2°
Spot Mode: 2°-- 40°, Linear Adjustment
Wash Mode: 3°-- 50°, Linear Adjustment

12CONTROL3

DMX512 5- pin interfaces(Optional 3-pin)

25channels in short mode, 31channels in standard mode , 35channels in extended mode

Self-test mode

13OTHER FUNCTIONS6

Adjustable Pan & Tilt speeds

Lamp’s and fixture’s hours displayed

Modular Structure for easy maintenance

DMX512 wireless receiever

DMX512 Wireless Transmitter ( Optional)

ArtNet and sACN ( Optional)

14HOUSING1

Cast aluminum ,high temperature and anti-UV ABS, IP66

15NET WEIGHT1

37.6Kg

16WORK TEMPERATURE3

Maximum ambient temperature: 45°C
Waterproof projector: When the ambient temperature is below minus 20 Celsius, please preheat the lamp not less than 10 minutes and then reset the projector
【Version: 20260319】

17General6

1 Color wheel: 12colors+ Open, rainbow effect with bi-directional and variable speeds, Stepping/linear color changing; CMY color mixing system with macros
1 Fixed gobo wheel: 17 gobos +Open; Bi-directionally rotatable, and shakable at variable speeds
1 Rotating gobo wheel: 7Interchangeable Gobos +Open; Bi-directionally rotatable, and shakable at variable speeds

03DescriptionManufacturer's description

What it is.

AQUA 580 BWS is an all weather fixture having functions of Beam, Spot and Wash with ingress protection up to IP66. Its wide front lens of 160mm produces 130,000lux @ 20m and at Beam mode its beam of 2° is full, solid, sharp and punching. At beam mode, the beam can be even reduced to 0 degrees via different sizes of beam reducers, realizing laser effect; At Spot mode, the wide zoom(2°-40°)shows its excellent optics ; At Wash mode, the zoom(3°-50°) and fast frost filter make good wash effects. Linear CMY color mixing and CTO, many color filters, rotating gobos, fixed gobos ,dynamic effects and 4 prisms make outstanding and sharp in-air visual effects. Smart magnet sensors make more accurate and faster positioning. Smart fan control for dynamic cooling makes it uniquely advance and advantageous. What’s more, it is an outdoor moving head fixture with high ingress protection for dusty, rainy, sunny and other harsh places.
