AQUA Laser 500 BWS

ModelPR-8357

Light source: 500Wlaser module
Power consumption: 660W @220V
Power supply: 100V~240VAC,50/60Hz
Colour temperature: 9500K
Net weight: 37.8Kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:16

PR Lighting AQUA Laser 500 BWS2:16

02SpecificationManufacturer's data · 14 groups · 34 values

What this product is, in numbers.

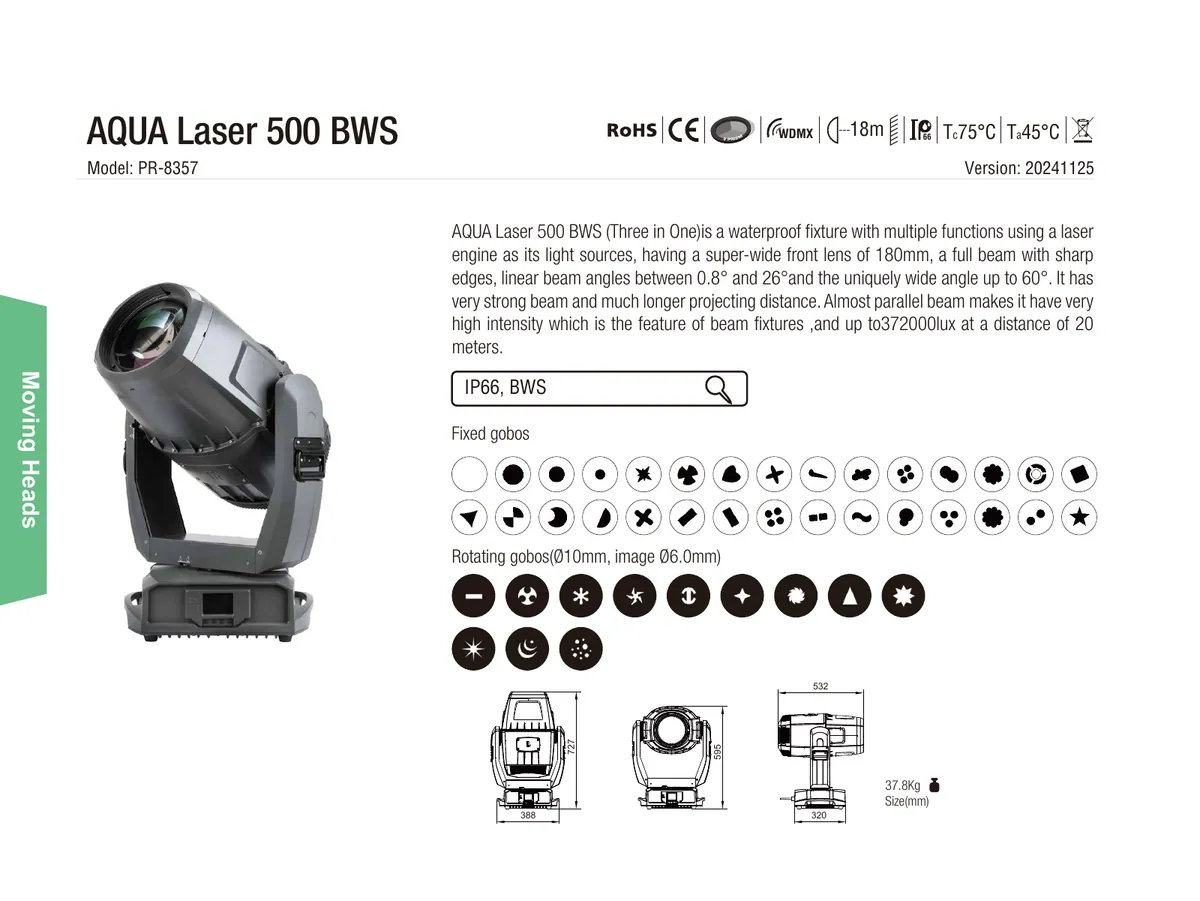

PDFDatasheetEN · 2 pages · 726 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Electric parameters4

Input voltage: 100V~240VAC,50/60Hz
Power consumption: 660W @220V
Rated current: 3.0A/220V
Power factor: PF>0.9

02Light sources3

Light sources: 500Wlaser module
Color temperature: 9500K
Rated life: 12000hrs

03Prism1

2 prism wheels: 1 wheel (an 8-facet circular prism+a 4-facet linear prism )+1 wheel (a 9-facet circular prism +a gradient prism), prisms can be overlapped.Other prism options available

04Frost1

1 pc frost filter

05Focus1

DMX linear focus

06Strobe/Dimmer1

Double flag strobe,0.3-25 F.P.S./linear dimmer

07Movements1

Pan (0°-540°),Tilt(0°-270°)with auto positioning correction function

08Beam angle2

Beam/Spot mode angle: 0.8°-26° Wash mode : 1.8°-30°
Unique super wide angle/under wash mode: 38°-60°

09Control2

International standard DMX 512 signal ,5-pin XLR connectors

Short Mode 23 channels,standard Mode 28 channels,extended mode 31 channels Self test mode

10Other functions4

Pan and Tilt speeds adjustable

Lamp hours and fixture hours displayed Modular construction easy for maintenance Wireless receiver

Wireless transmitter (Optional)

ArtNet control(Optional)

11Housing and ingress protection1

Cast aluminum and high temperature and UV resistantABS with IP66

12Weight1

Net weight: 37.8Kg

13Ambient temperature3

45 °C at maximum
Note: If the ambient temperature is below 0°C,preheat the fixture for some time( less than 20 min based on actual situation normally)before striking the light source
【Version: 20260319】

14General9

1 color wheel: 19 colors + open; Macros and bi-directional rainbow effects with variable speeds; CMY color mixing system
1 fixed gobo wheel: 30gobos; Shakable at variable speeds and; bi-directional rotation at variable speeds
1 rotating gobo wheel: 12gobos+open; bi-directional rotation at variable speeds; gobo exchangeable
