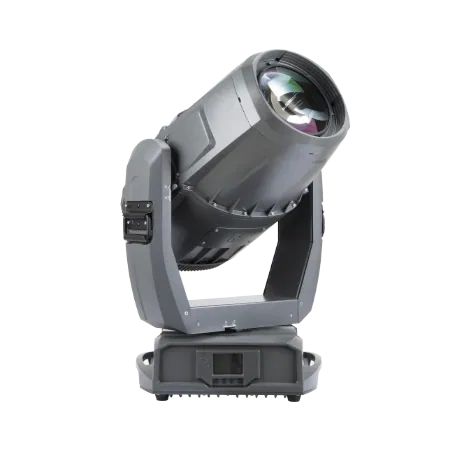

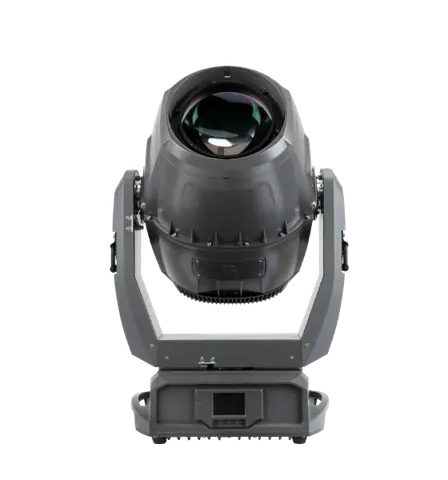

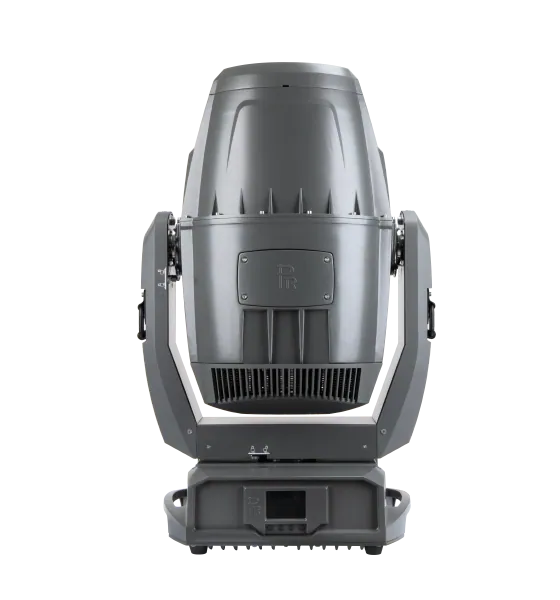

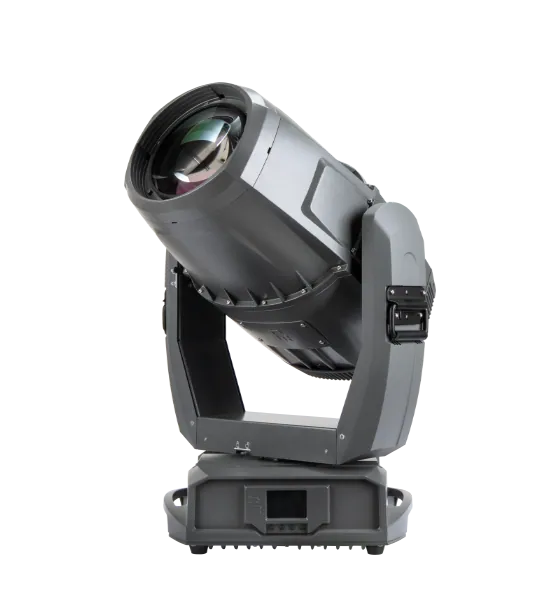

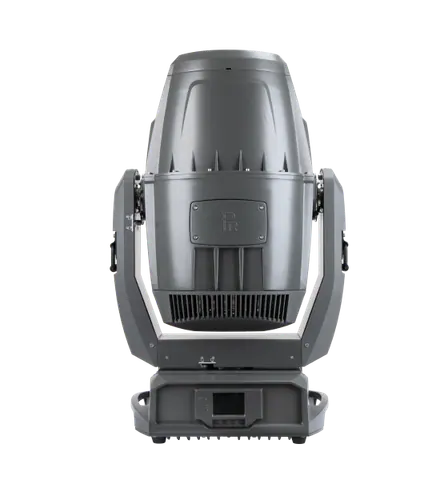

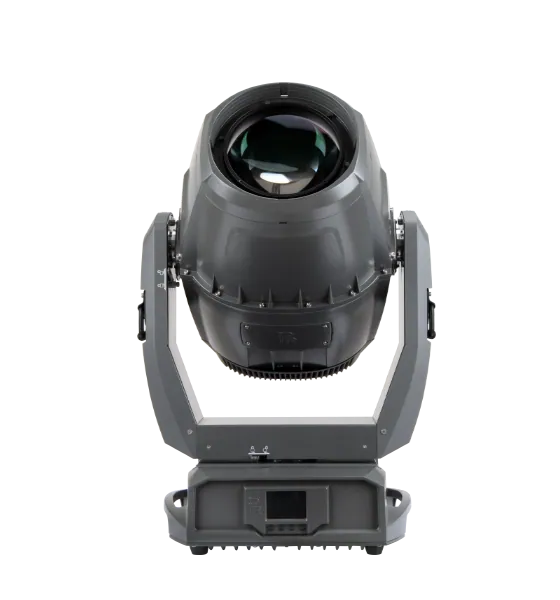

AQUA Laser 260 BWS

ModelPR-8327

AQUA Laser 260 BWS (Three in One)is a waterproof fixture with multiple functions using a laser engine as its light sources, having a super-wide front lens of 180mm, a full beam with sharp edges, linear beam angles between 0.6° and 20°and the uniquely wide angle up to 50°. Almost parallel beam makes it have very high intensity which is the feature of beam fixtures ,and up to340000lux at a distance of 20 meters.Its light source has long life-span, low intensity aging, low emitting heat, low power consumption, high luminous efficacy.

Power consumption: 420W @220V
Power supply: 100V~240VAC,50/60Hz
Colour temperature: 9000K
Net weight: 36.2 Kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:05

PR Lighting AQUA Laser 260 BWS2:05

02SpecificationManufacturer's data · 1 group · 33 values

What this product is, in numbers.

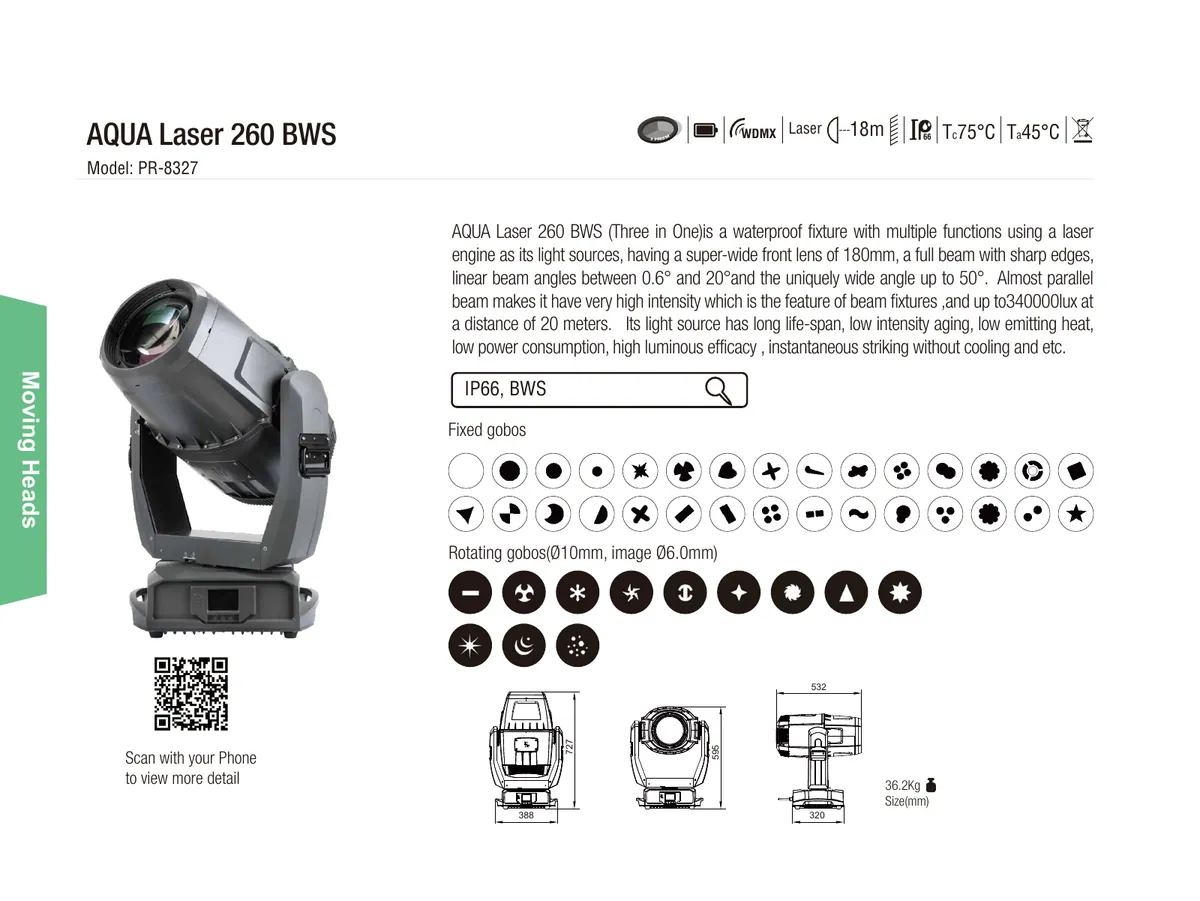

PDFDatasheetEN · 2 pages · 758 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01General33

Electric parameters
Input voltage: 100V~240VAC,50/60Hz
Power consumption: 420W @220V
Rated current: 2 .0A/220V
Power factor: PF>0.9
Light sources
Light sources: 260Wlaser module
Color temperature: 9000K
Rated life: 12000hrs
Prism/frost
2 prism wheels: 1 wheel (an 8 -facet circular prism+ a 4 -facet linear prism )+1 wheel (a 9-facet circular prism + a gradient prism),prisms can be overlapped.Other prism options available
Frost: 1 pc frost filter
Focus: DMX linear focus
Strobe/Dimmer: Double flag strobe,0.3-25 F.P.S./linear dimmer
Movements: Pan (0°-540°),Tilt(0°-270°)with auto positioning correction function
Beam angle
Beam/Spot mode angle: 0.6°-20 ° Wash mode : 1.8°-23 °
Unique super wide angle: >50°
Control: International standard DMX 512 signal ,5-pin XLR connectors; Short Mode 23 channels,standard Mode 28 channels,extended mode 31 channels Self test mode
Other functions: Pan and Tilt speeds adjustable; Lamp hours and fixture hours displayed Modular construction easy for maintenance Wireless receiver; Wireless transmitter (Optional); ArtNet control(Optional)
Housing and ingress protection: Cast aluminum and high temperature and UV resistantABS with IP66
Weight
Net weight: 36.2 Kg
Operation temperature: -20 °C ~45 °C
Note: If the ambient temperature is below 0°C,preheat the fixture for some time(less than 20 min based on actual situation normally)before striking the light source
【Version: 20260319】
1 color wheel: 19 colors + open; Macros and bi-directional rainbow effects with variable speeds; CMY color mixing system
1 fixed gobo wheel: 30gobos; Shakable at variable speeds and; bi-directional rotation at variable speeds
1 rotating gobo wheel: 12gobos+open; bi-directional rotation at variable speeds
