Sheet 05.726

PR Lighting · Hybrid fixtures

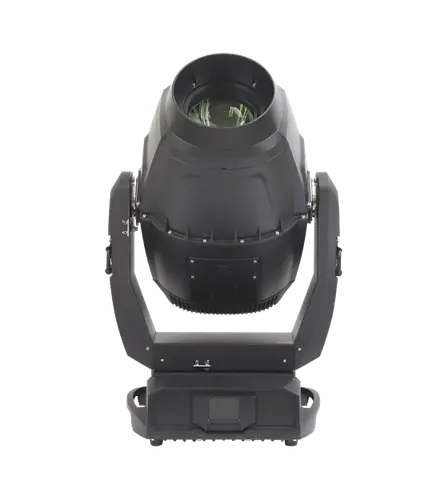

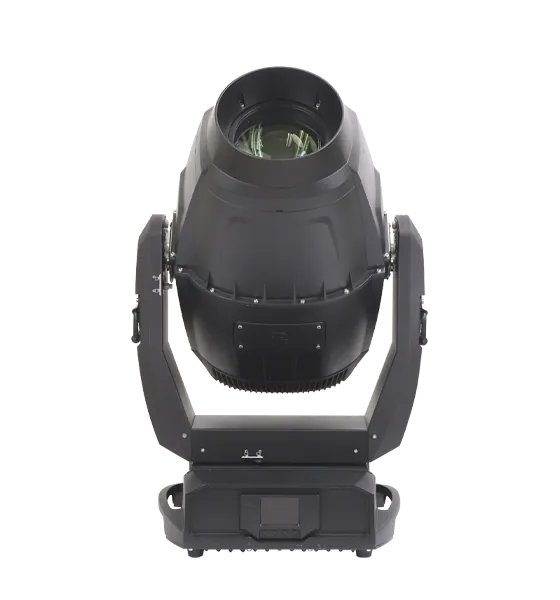

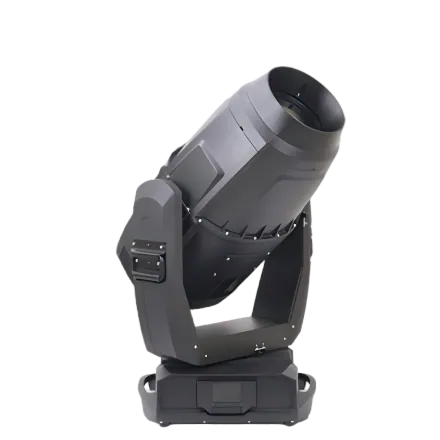

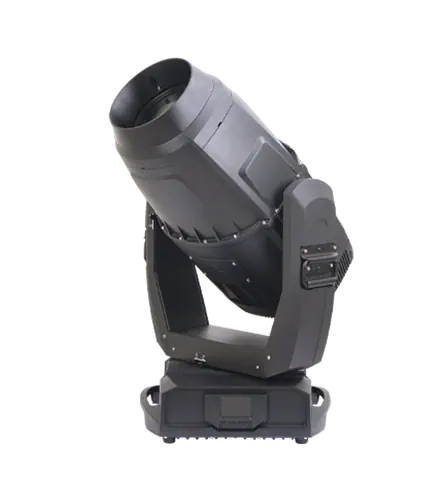

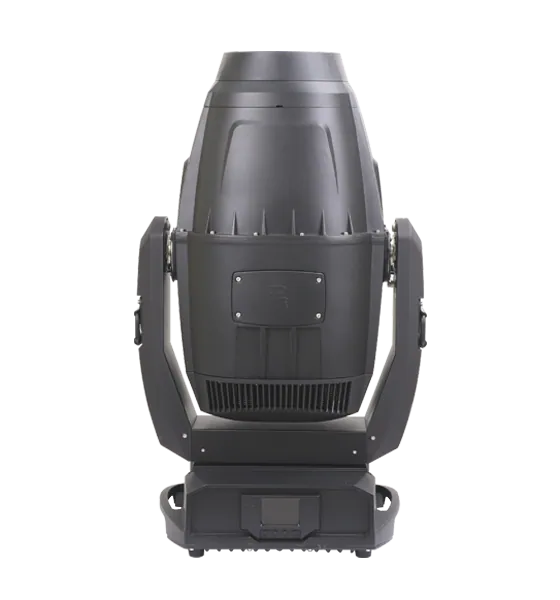

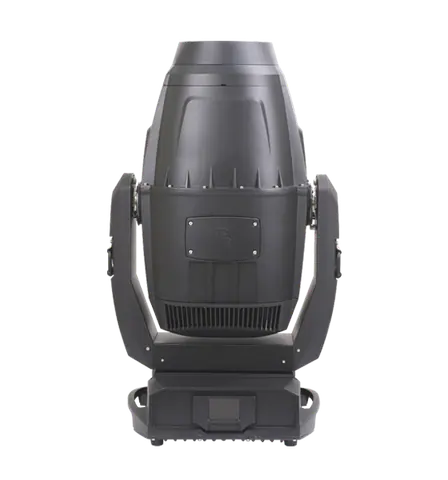

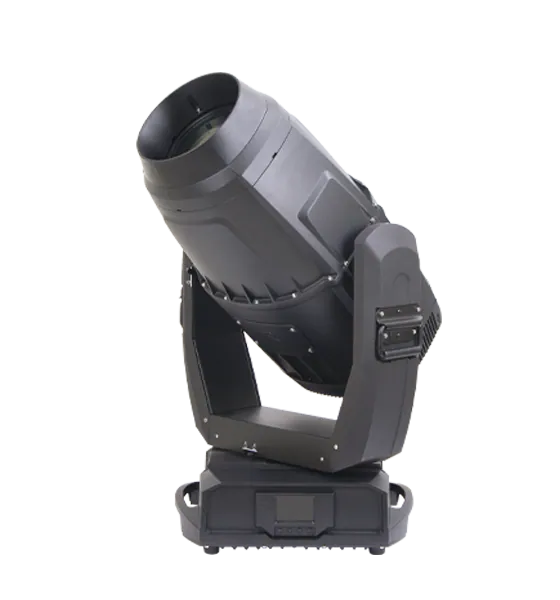

AQUA LED 770-W BWSF

ModelPR-6712

Light source: 500W White LED (9000K, 20000hrs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:31

PR Lighting AQUA LED 770-W BWSF1:31

02SpecificationManufacturer's data · 22 groups · 53 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input Voltage1

100V~240V AC,50/60Hz

02Input Power4

770W@220V AC; 790W @ 100V AC
Max. Current: 8.0A @ 100V
Power factor: PF>0.9

03Light Source2

500W White LED (9000K, 20000hrs)
CRI: Ra≥70( Option:Ra≥90)

04CTO1

0-100% linear CTO

05Prism1

1pc of 3 facet prism , Bi-directional rotation with variable speeds and indexing function

06Frost1

1pc frost filter, linear frost effect( 0%-100%)

Show the full specificationHide the rest of the specification16 more groups · 43 values

07Effect Wheel1

1pc, replaceable, bi-directional rotation with variable speeds

08Focus1

DMX linear Focusing

09Dimmer1

0-100% Linear adjustment

10Strobe1

Double shutter blades, 0.3~25 F.P.S

11Pan And Tilt Movement2

Tilt 0°~270°

Pan 0°~540°

12Beam Angle1

linear zoom 5.5°~ 50° with 16 bit function

13Other Function8

Total hours displayable

English and Chinese menus

Built-in sensor diagnostic system

Software versions displayable

Input signal isolation

Modular Structure for easy maintenance

Ethernet Interface

DMX512 wireless reciever

14Housing1

High temperature ABS+ High tensile cast aluminum , IP66

15Net Weight1

39Kg

16Operation Temperature3

Highest ambient temperature 45°C
Note: If the ambient temperature is below -20°C; reset a projector before pre-heating it for more than 30 minutes

17Accessories6

Safety cord 2 Pc

User manual 1 Pc

Power Cable 1 Pc

XLR connector 1 Set Male and female

G clamps 2 pcs

Ω clamps 2 pcs Optional

18Control5

DMX512, 5 pin interfaces

RDM control protocol

31channels in short mode,35 channels in standard mode and 50 channels in extended mode

Master/Slave synchronized mode

Stand-alone mode

19General1

【Version: 20231129】

20Color Wheel4

CMY linear mixing system with macros
1 color wheel: 7exchangeable colors+ Open; Half color effect, rainbow effect with bi-directional and variable speeds; Stepping/linear color changing

21Gobo5

1 Rotating Gobo Wheel: 8 replaceable gobos+ Open, Glass or Metal Gobo; Bi-directional Rotation with variable speeds; With Indexing Function; Gobo Shake Effect with Variable Speeds; Bi-directional Scrolling with Variable Speeds

22Framing2

1framing module rotates between 0° and 90° and produces graphics of different shapes and sizes

4 framing blades can produce full curtain effect
