Sheet 05.727

PR Lighting · Hybrid fixtures

AQUA LED 2600-W BWSF

ModelPR-8189

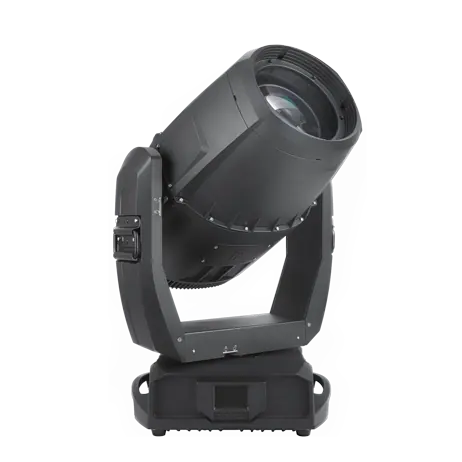

AQUA LED 2600-W BWSF(Four in One) is a moving head fixture with functions of Framing, Spot, Beam and Wash using 1000 W white LED engine as its light source.

Light source: 1000W, White LED module
Power consumption: 1200W @ 220V
Power supply: 100V~240V AC,50/60Hz
Colour temperature: 8000K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:39

PR Lighting AQUA LED 2600-W BWSF2:39

02SpecificationManufacturer's data · 21 groups · 72 values

What this product is, in numbers.

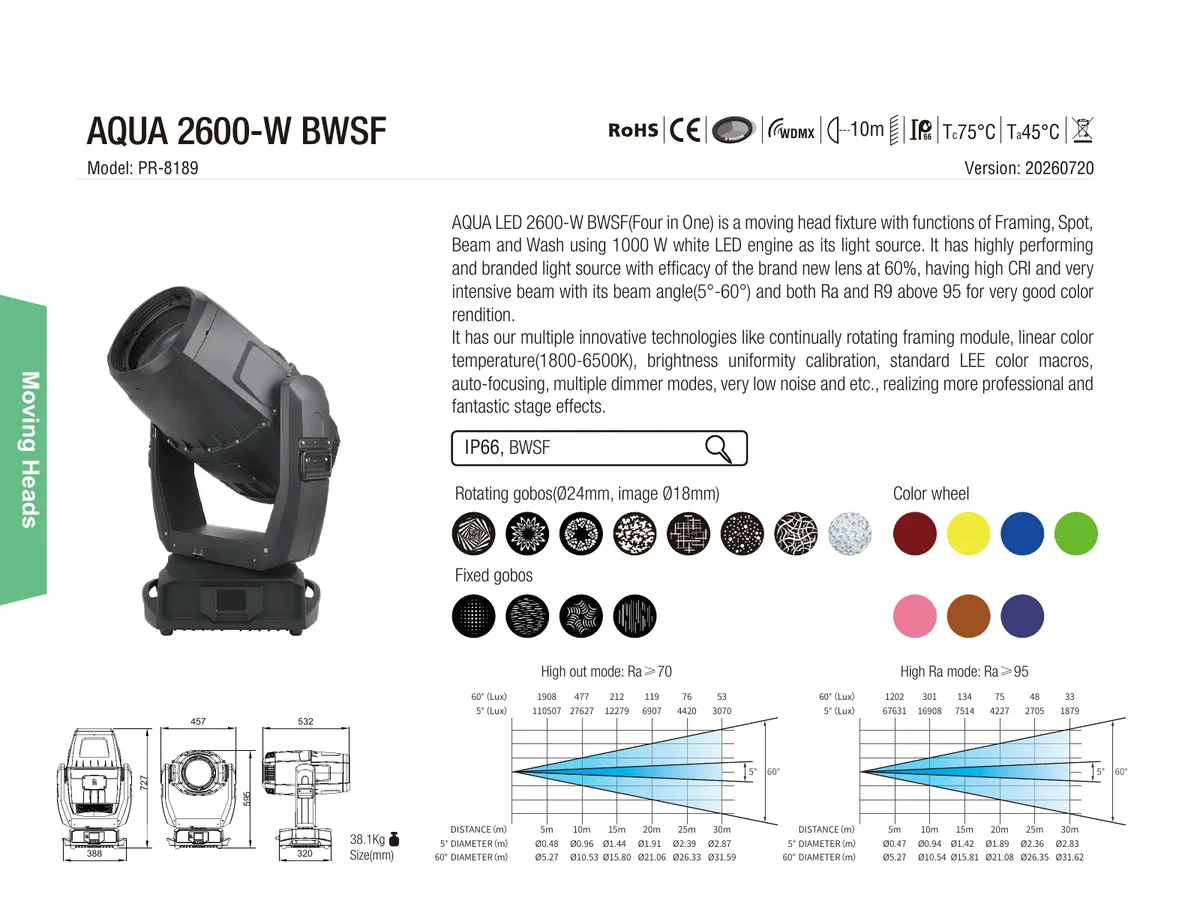

PDFDatasheetEN · 2 pages · 447 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01ELECTRIC PARAMETERS4

Input voltages: 100V~240V AC,50/60Hz
Input Power: 1200W @ 220V
Power factor: PF〉0.95
Max. Current: 5.5 A @ 220V

02LIGHT SOURCE SPECIFICATIONS4

Power consumption: 1000W, White LED module
Color Temperature: 8000K
Manufacturers Rated Lamp Life: >20000hour
CRI: Ra≥70 Optional high out version Ra≥95

03CTO1

Linear CTO system(0-100%, 1800K-6500K)

04EFFECT WHEEL1

Bi-directional rotation at variable speeds

05IRIS1

5-100% linear with macros

06PRISM1

1pc, 3-facet circular prism, bi-directional rotation at variable speeds with indexing function

Show the full specificationHide the rest of the specification15 more groups · 60 values

07FROST1

1 frost filter ,0-100% linear

08BEAM ANGLE1

5°~60°,linear with 16 bit control

09FOCUS1

DMX linear with auto focus function

10DIMMER11

Linear electronic dimmer 0-100% with 16 bit control; 3 dimmer speeds; 5 dimmer curves; Dimmer frequency(1.2K-25K) good for 4K high speed video camera; STROBE; Electronic strobe 0.3~25 Hz, optional pulse, synchronized or non-synchronized strobe at slow, medium and fast speeds; HEAD MOVEMENT; Pan 540º, Tilt 270º with auto position correction and 16 bit control; ADVANCED MACROS
Color temperature macros: optional 2700K,3000K,3500K,4000K,4500K,5000K,5700K
Standard color macros: 89 color options based on standard color chart.

11FIXED TYPE5

Including moving head light, fixed-focus profile light, zoom profile light; Moving head light with beam angle range(5-60°)
Fixed focus profile light with beam angle options including: 5°,10°,19°,26°,36°,50°
Zoom profile light with beam angle ranges including: 5-15°,15-35°,35-60°
(Note: Auto quiet theater mode for fixed focus profile light and zoom profile light)

12FAN MODE1

Standard and theater modes. Theater mode is quiet mode

13BRIGHTNESS CALIBRATION FUNCTION2

With brightness calibration function to calibrate initial brightness for a single fixture or multiple ones and store brightness

values into the fixtures

14CRI MODE1

Running at high CRI mode via DMX channel to ensure high CRI optical effect.

15CONTROL6

International standard DMX512 signal and RDM function

40channels in short mode, 46channels in standard mode,59channel in extended mode

Art Net protocol(optional) , sACN protocol(optional), DMX512 wireless control

Master/Slave mode

Standalone mode

Master Mode

16CONTROL INTERFACE2

DMX512 ports(5-pin)

Ethernet port RJ45

17OTHER FUNCTIONS12

Adjustable Pan & Tilt speeds

Pan and Tilt invertible and swappable

Light source’s and fixture’s hours displayed

LCD color Chinese/English screen, display invertible and touch keys

Intelligently controllable fans

Sensor diagnostic system

Input signal isolated

modular construction for easy maintenance

DMX channel voltages monitoring

Non-touchable magnetic sensor for positioning, signal feedback, absolute position memory, auto-positioning after power-off or DMX signal disrtuption

Firmware upgrade via DMX cable

Optional ethernet port

18HOUSING1

High temperature ABS, IP66

19NET WEIGHT1

38.1Kg

20AMBIENT TEMPERATURE2

Temperature at maximum 45°C
【Version: 20260720】

21General13

CMYcolormixing systemwithmacros
1Color wheel: 7colors+ Open,; Half color, bi-directionalrainbow effect at variable speeds,; Stepping/linear color changing
1 framing module: 4 framing blades for graphics of different sizes; and shapes; Bi-directionally and continually (360°)rotating , each blade for full; curtain effect
1Rotating gobo wheel: 8RotatingGobos + Open; Bi-directionally rotatable, and shakable at variable speeds
GoboReplaceable, Gobo diameter: Φ24mm,Gobo image diameter:Φ18mm
1 fixed gobo wheel: 4 fixed Gobos +Open; Bi-directionally rotatable, and shakable at variable speeds

03DescriptionManufacturer's description

What it is.

AQUA LED 2600-W BWSF(Four in One) is a moving head fixture with functions of Framing, Spot, Beam and Wash using 1000 W white LED engine as its light source. It has highly performing and branded light source with efficacy of the brand new lens at 60%, having high CRI and very intensive beam with its beam angle(5°-60°) and both Ra and R9 above 95 for very good color rendition. It has our multiple innovative technologies like continually rotating framing module, linear color temperature(1800-6500K), brightness uniformity calibration, standard LEE color macros, auto-focusing, multiple dimmer modes, very low noise and etc., realizing more professional and fantastic stage effects. With ingress protection up to IP66, it can be used for Landscape, Cultural touring ,TV studios, theatres, performing stages and etc.
