Sheet 05.728
PR Lighting · Hybrid fixtures

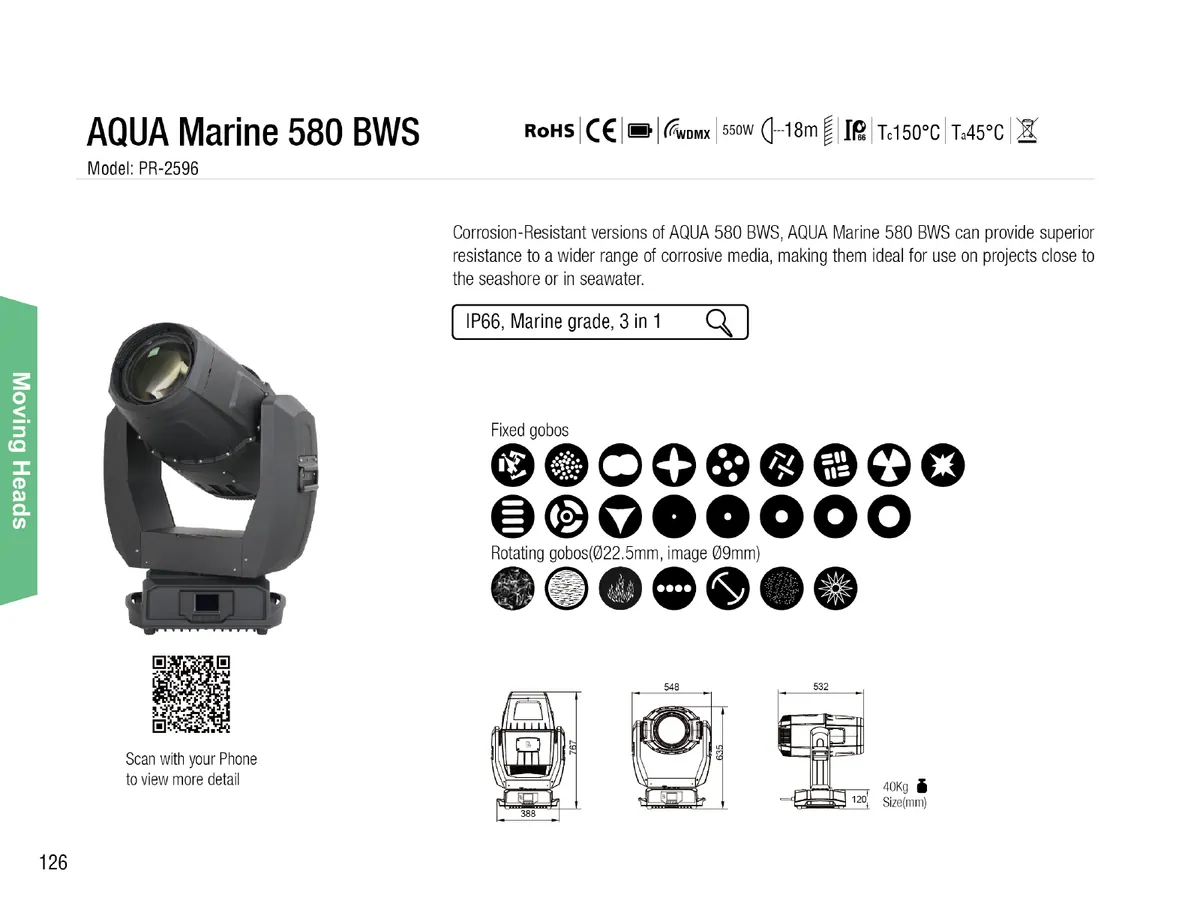

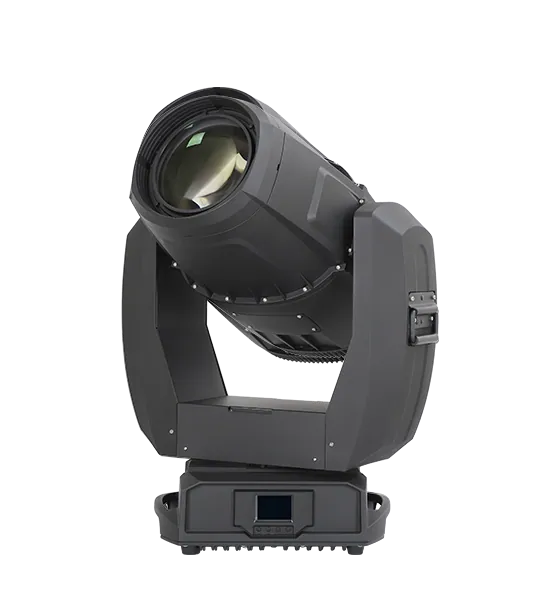

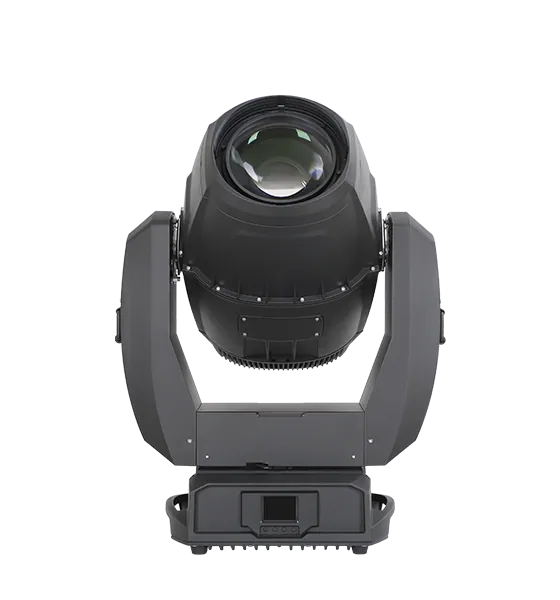

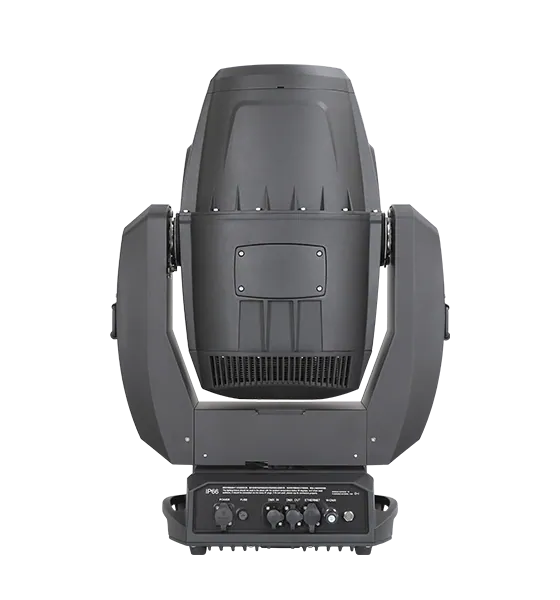

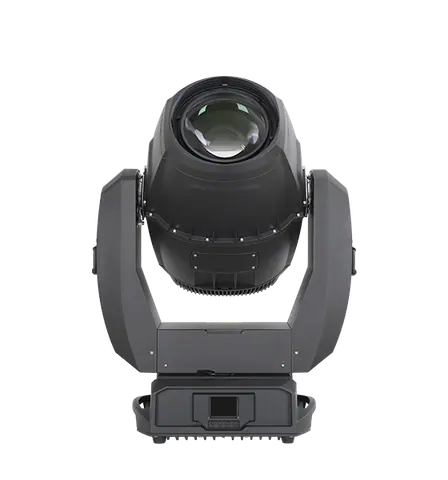

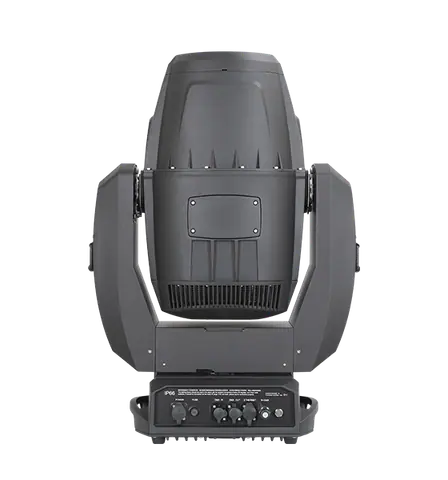

AQUA Marine 580 BWS
ModelPR-2596
Corrosion-Resistant versions of AQUA 580 BWS, AQUA Marine 580 BWS can provide superior resistance to a wider range of corrosive media, making them ideal for use on projects close to the seashore or in seawater.
- Light source
- PHILIPS MSD Platinum 25R (550W), (7,800K, 1,500 hrs)
- Net weight
- 40Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
AQUA Marine 580 BWSPrice on requestRequest a quotation
01SpecificationManufacturer's data · 21 groups · 44 values
What this product is, in numbers.
PDFDatasheetEN · 2 pages · 2.2 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Input Voltages1
- 100-240V AC, 50/60Hz
02Power Consumption1
- 800W@220V
03Light Source2
- PHILIPS MSD Platinum 25R (550W), (7,800K, 1,500 hrs)
- Optional
- OSRAM SIRIUS HRI 550W XL, (7,500K, 1,500 hrs)
04Strobe1
- Double shutter blades, 0.3-25 F.P.S
05Dimmer1
- 0-100% linearly dimming
06Prism2
- Four prisms(standard
- 8-facet circular+4-facet linear+9-facet circular and gradient prisms),
- bi-directional rotation with variable speeds, optional
- other prisms
Show the full specificationHide the rest of the specification15 more groups · 36 values
07Frost1
- One frost filter, linear frost effect
08Effect1
- 1 Effect wheel, can overlap with gobos, bi-directional rotation with variable speeds
09Focus/Zoom1
- DMX linear focus/zoom
10Head Movement1
- Pan 540°, tilt 270° with auto position correction
11Light Angle3
- Beam mode
- 0°~2°
- Spot mode
- 2°~40°
- Wash mode
- 3°~50°
12Control4
- International DMX512, 5 pins(optional 3 pins) interface
- RDM control protocol
- Short mode 25 channels, standard mode 31 channels and extended mode 35 channels
- Self-test mode
13Other Functions6
- Adjustable pan & tilt speed
- LCD display screen
- Fixture and lamp usage time display
- Modular structure for easy maintenance
- DMX512 wireless receiver
- DMX512 wireless transmitter(optional)
14Physical2
- Housing
- cast aluminum and high temperature UV resistant ABS, IP66
- Ambient temperature
- maximum 45°C
15Weight1
- Net weight
- 40Kg
16Packaging3
- Standard
- carton 815x725x700(mm)
- Standard
- carton
- Optional
- flight case
17Accessories5
- G clamp, 2 pcs
- 5 Pins XLR connector, 1 set
- Safety cord, 1 pc
- Power cord, 1 pc
- Optional
- Ω clamp, 2 pcs
18CMY1
- CMY linear color mixing system with macros
19Color Wheel3
- 1 Color wheel
- 12 dichroic color filters plus open
- Rainbow effect with bi-directional and variable speeds
- Stepping/linear color changing
20Fixed Gobo2
- 1 Fixed gobo wheel
- 17 gobos plus open
- Bi-directionally rotatable, and shakable effect at variable speeds
21Rotating Gobo2
- 1 Rotating gobo wheel
- 7 interchangeable gobos plus open
- Bi-directionally rotatable, and shakable at variable speeds
02Documents3 files · 5.8 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
Software and data files01
