Sheet 05.949
PR Lighting · Architectural lighting
CUBIX 300
ModelPR-6803

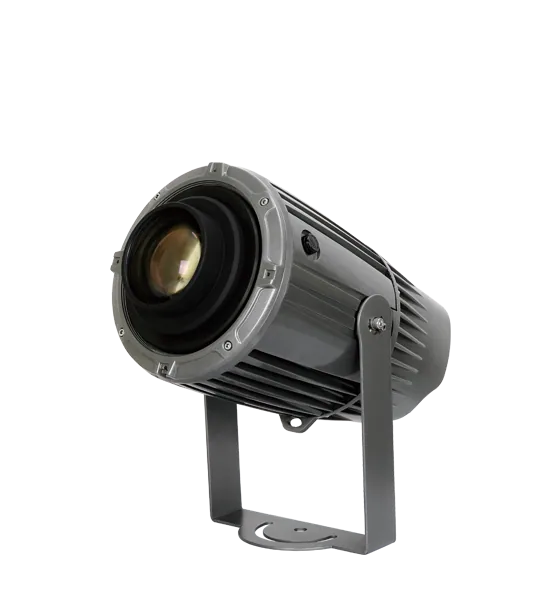

CUBIX 300 is new launched exterior gobo projector, equipped with a 150W bright white LED source. With precise control, 15°~ 45° wide zoom, small and light weight.
- Light source
- TX-3636W150FC120-NUVENG-A01 150W LED (50000hours,1pc,White,7500K)
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
CUBIX 300Price on requestRequest a quotation
01VideoManufacturer's video · 0:40
PR Lighting CUBIX 300: the manufacturer's video
02SpecificationManufacturer's data · 14 groups · 28 values
What this product is, in numbers.

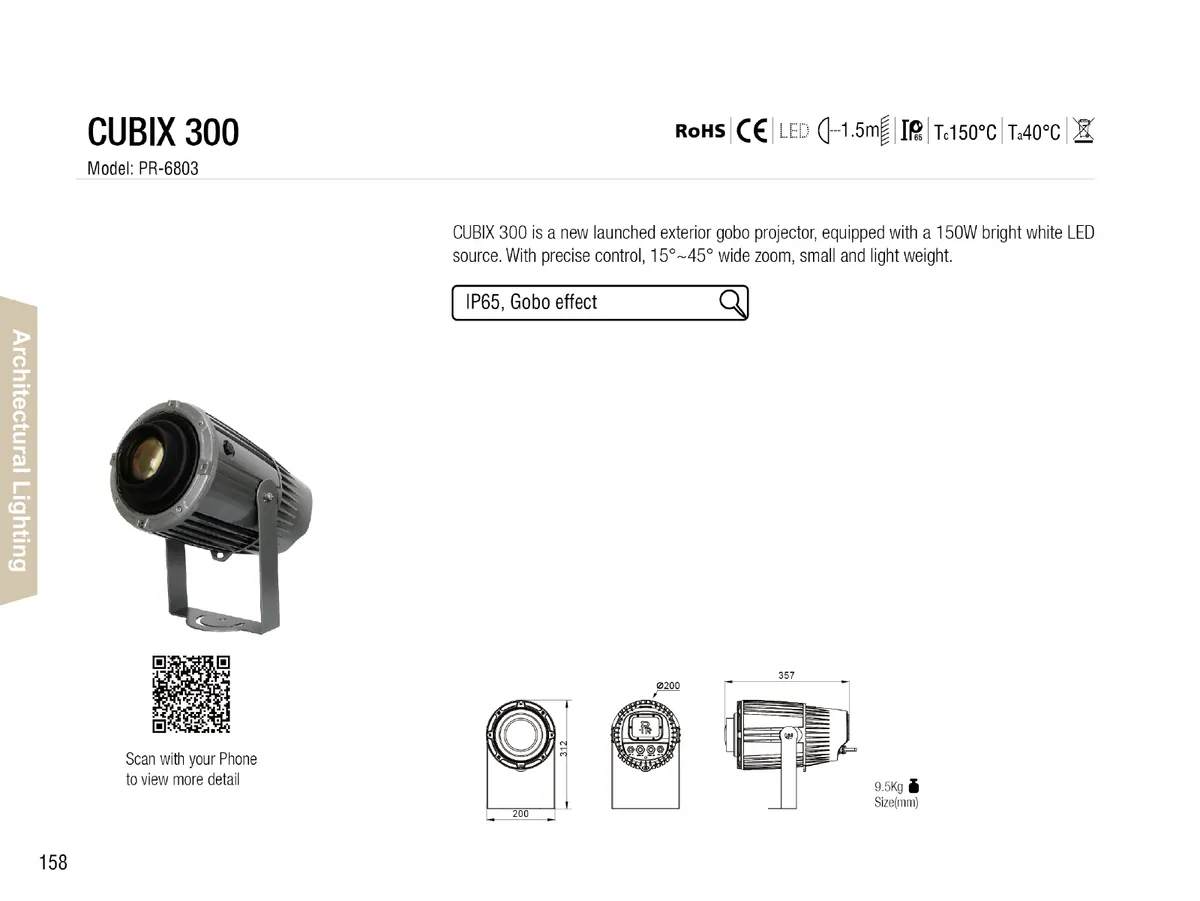

PDFDatasheetEN · 2 pages · 1.7 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Input Voltage1
- 100V~240V AC,50/60Hz
02Input Power3
- 170W @ 220V
- Maximum current
- 0.9A
- Power factor
- PF>0.95
03Light Source1
- TX-3636W150FC120-NUVENG-A01 150W LED (50000hours,1pc,White,7500K)
04Dimmer1
- Linear Dimmer from 0-100%
05Strobe1
- Electronic Strobe 0. -25FP.S with pulse macros
06Control4
- International standard DMX512 signal control protocol, 5-pin DMX 512 interfaces
- Master/Slave synchronized Mode
- Stand alone mode, preset memory, self test mode, static scene mode
- 3 operation modes(DMX mode, user memory, preset memory)
07Beam Angle1
- Beam Angle 15°~45°,linear dimming
08Other Functions4
- Wireless receiver
- LCD display invertible
- DMX512 interface for firmware upgrade, quick and convenient
- Over-temperature protection
09Housing1
- High tensile cast Aluminum alloy , IP65
10Net Weight2
- Net weight 9.5Kg
- Gross weight 12.8 Kg in cardboard box
11Operation Temperature1
- Maximum ambient temperature
- 40 °C
12Accessories5
- Clamp 1 Pc
- Power cord 1 Pc
- XLR loop cable 2 Pcs
- Safety cord 1 Pc
- User manual 1 Pc
13Color Wheel2
- 1 color wheel(5 fixed colors+ open)
- continual rotation, magnet sensor for positioning
14Rotating Gobo1
- 1 rotating gobo wheel,4 Gobos
Show the full specificationHide the rest of the specification0 more groups · 0 values
03Documents2 files · 2.9 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
