Sheet 05.952

PR Lighting · Architectural lighting

TANGO LED 4000-W FRAMING

ModelPR-6159

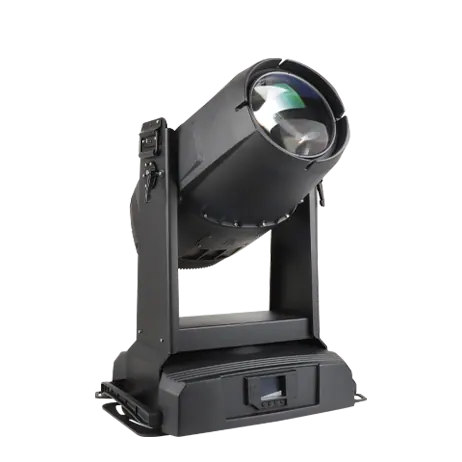

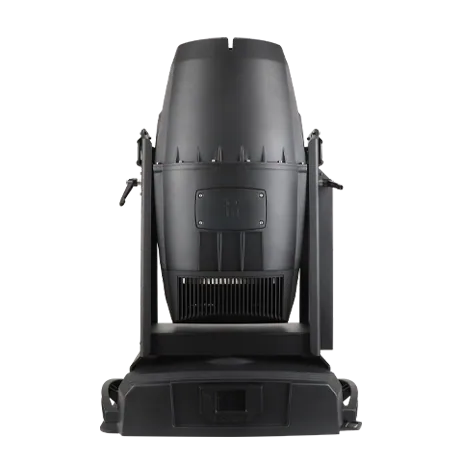

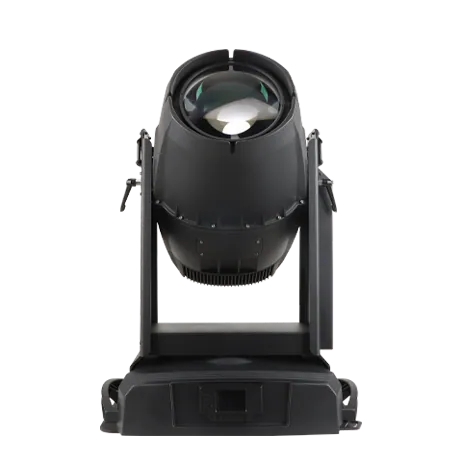

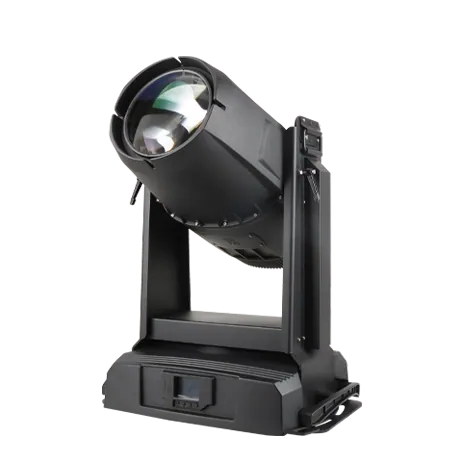

TANGO LED4000-W FRAMINGis a moving head light using 1800W white LED engine as its light source.

Light source: 1800W ,LED white
Power consumption: 1950W@220V
Power supply: 200V-240V AC,50/60Hz

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 23 groups · 57 values

What this product is, in numbers.

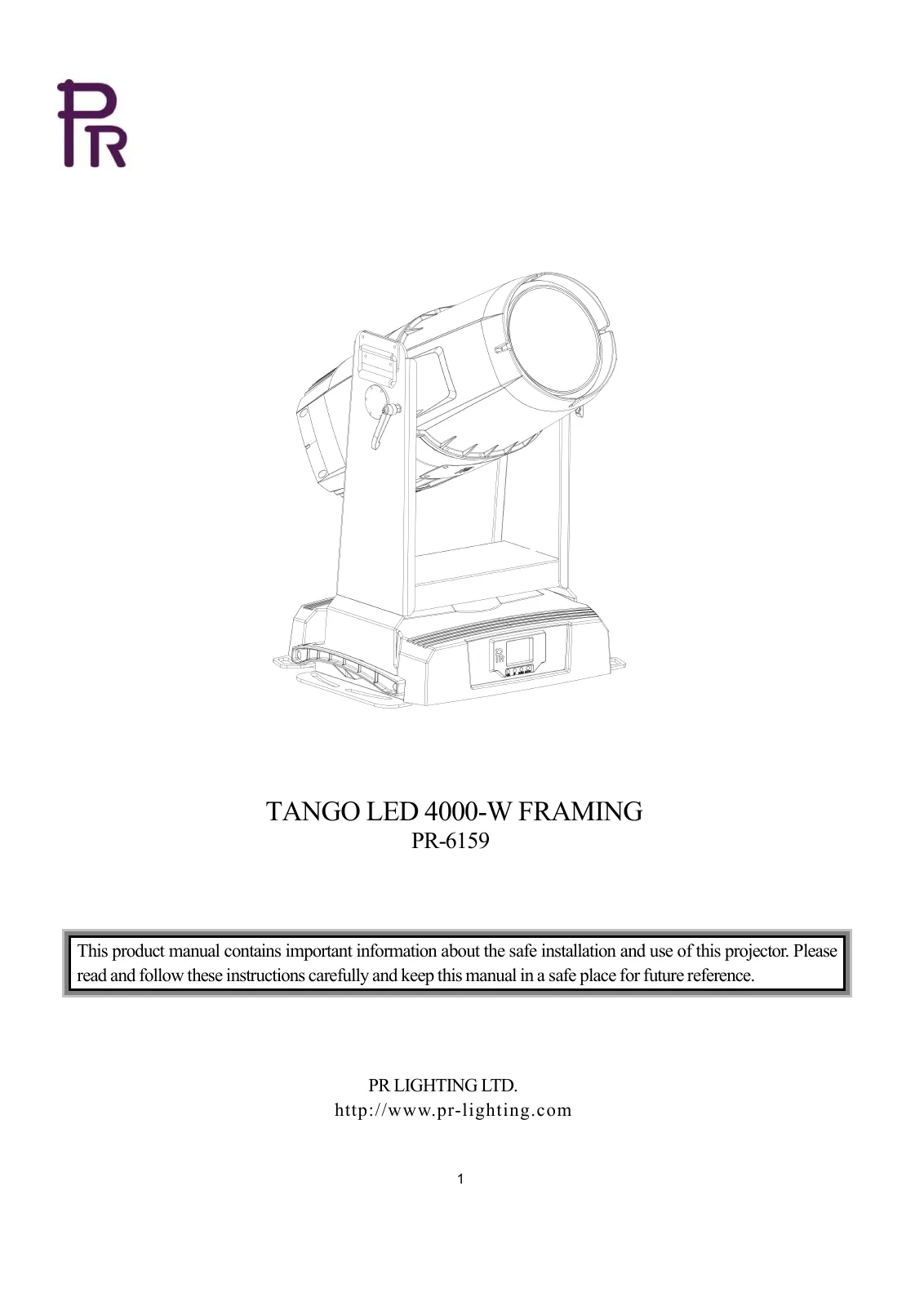

PDFUser manualEN · 33 pages · 8.5 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01ELECTRICAL PARAMETERS4

Input voltage: 200V-240V AC,50/60Hz
Input power: 1950W@220V
Maximum Current: 9A @220V
Power factor: PF>0.95

02SPECIFICATIONS OF LIGHT SOURCE5

Lamp: 1800W ,LED white
Colour Temperature: 8000K
Manufacturers Rated Lamp Life: >20000hrs
CRI: Ra ≥70
Optional high CRI light source: Ra ≥95, R9 ≥95

03CTO1

Linear CTO system(0-100%),(1800K-6500K)

04EFFECT WHEEL1

1 animation effect wheel, bi-directional rotation with varied speeds

05IRIS1

Linear iris 5-100% with macros

06PRISM1

1pc of 4-facet circular prism, bi-directional rotation with varied speeds with indexing function

Show the full specificationHide the rest of the specification17 more groups · 44 values

07FROST1

2frost filter, 1 heavy frost+1 light frost , ( 0-100% linear )

08BEAM ANGLE1

Linear zoom 5°-56°with 16 bit precision

09FOCUS1

DMX linear focus

10DIMMER4

Linear electronic dimmer 0-100% with 16 bit control

3 dimmer speeds

5 dimmer gamma curves

Dimmer frequency(1.2K-25K)

11STROBE1

Electronic strobe, 0.3~25 F.P.S with options for synchronous and asynchronous random strobes

12HEAD MOVEMENT1

Tilt: 270º

13ADVANCE MACROS2

Color temperature macros: 2700K、3000K、3500K、4000K、4500K、5000K、5700K
Color macros: 89colors

14FAN MODE1

Standard mode and theatre mode. Theatre mode is quiet mode.

15BRIGHTNESS CALIBRATION1

Brightness calibration function to calibrate initial brightness of a fixture or some fixtures in a DMX chain and store the brightness value in the fixture/fixures.

16CRI MODE1

For high CRI version fixtures, activation of high CRI mode by control channel for high CRI beam while dimming

17CONTROL5

International standard DMX512 signal with 5-pin DMX512 interfaces,RDM protocol

ArtNet protocol(optional)

35channels in short mode, 40channels in standard mode,54channel in extended mode

Master/Salve synchronized control mode

Standalone mode

18INTERFACE1

DMX 512 connector(5-pin, optional 3-pin) and Ethernet connectorRJ45(optional)

19OTHER FUNCTIONS7

Display of fixture and lamp hours, and software versions

Smart fan cooling system

Error diagnostic system with sensors

Isolated input signals

Modular construction for easy maintenance

Firmware update via DMX cable

DMX wireless receiver

20HOUSING AND INGRESSION PROTECTION1

High tensile cast aluminum + high temperature Engineering plastics, IP66

21WORKING TEMPERATURE2

Working temperature 45°C at maximum
Note: if the ambient temperature is below -20°C, reset it after preheating it more than 30 min

22WEIGHT2

Net weight 50KG
【Version: 20260825】

23General12

CMY linear coloring mixing system with macros; 1Color Wheel; 6 exchangeable color s+ open; Half color effect, Stepping/linear colors; Bi-directional color rainbow effect with variable speeds
1 rotating gobo wheel: 6 exchangeable+ open, glass/metal gobos; Bi-directional rotation, indexing, shake with varied speeds and bi-directional scrolling with varied speeds; 1 fixed gobo wheel; 7 exchangeable gobos+ open; Shake effect with varied speeds and bi-directional rotation with varied speeds
Framing module: 4 framing blades to make graphics with different sizes and shapes,each blade to make full curtain effect; Bi-directional continual rotation for the whole module

02DescriptionManufacturer's description

What it is.

TANGO LED4000-W FRAMINGis a moving head light using 1800W white LED engine as its light source. The LED light source is green and environmentally friendly and has long lifespan, very intensive and high quality beam with very good color rendition and both Ra and R9 above 95 for high CRI version. It has multiple innovative technologies like continually rotating framing module, linear CTO(1800K-6500K), calibration for brightness uniformity, color macros included in standard LEE color chart, multiple dimmer modes, quiet operation and etc., realizing professional and fantastic stage effects. Its Tilt can be manually adjusted and the light spot projected precisely and reliably. It has ingress protection of IP66 for any outdoor performance and landscape lighting.

03Documents2 files · 17 MB
