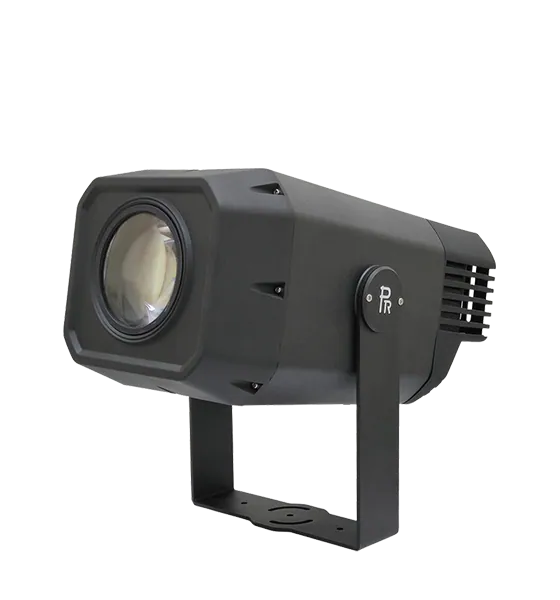

PR Lighting CUBIX 600 PR-6602
ModelPR-6602
- Power consumption
- 400W @ 230V
- Power supply
- 100V~240V AC,50/60Hz
- Colour temperature
- 8000K
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
CUBIX 600Price on requestRequest a quotation
01SpecificationManufacturer's data · 15 groups · 37 values
What this product is, in numbers.

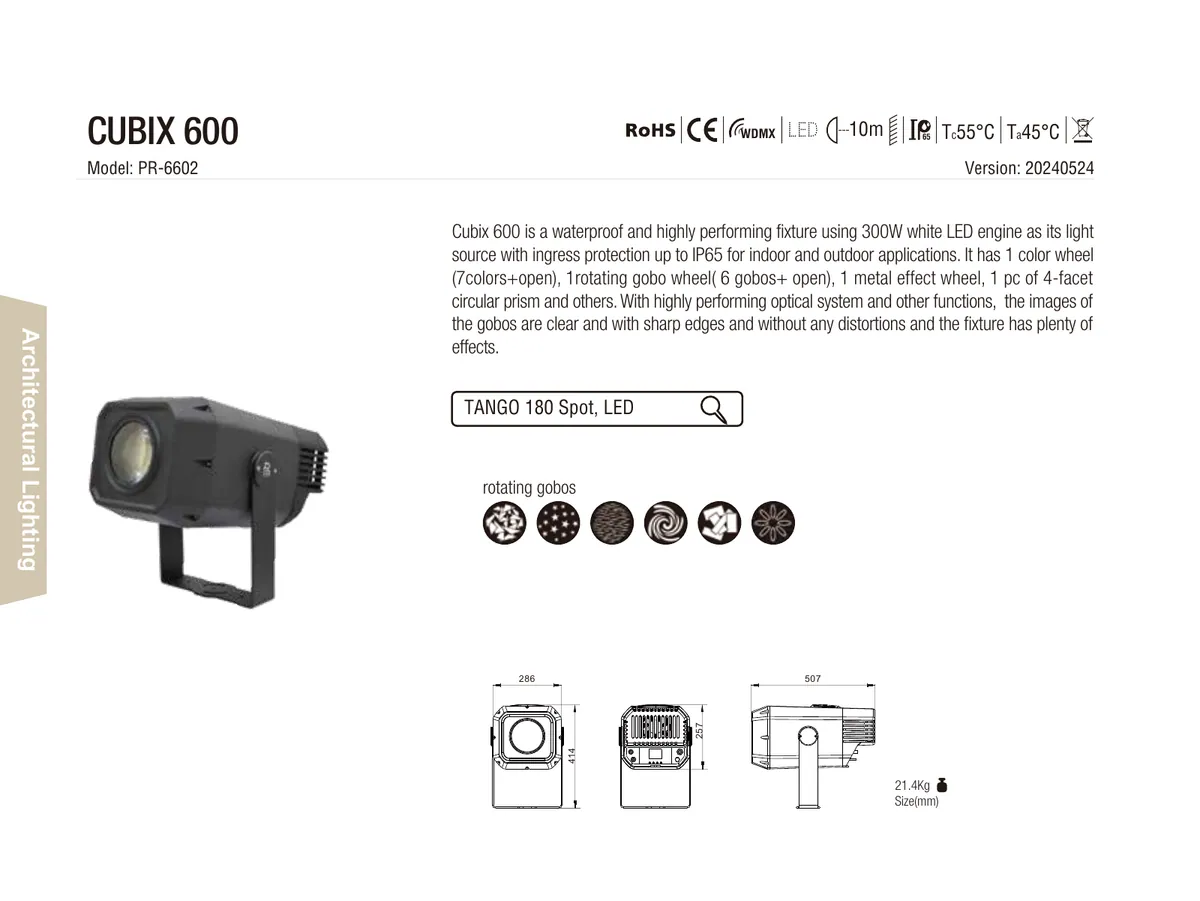

PDFDatasheetEN · 2 pages · 344 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01ELECTRIC SPECIFICATIONS4
- Input voltage
- 100V~240V AC,50/60Hz
- Input power
- 400W @ 230V
- Current at maximum
- 4.7A
- Power factor
- PF>0.9
02LIGHT SOURCE SPECIFICATIONS4
- LED
- 300W , White
- Power Consumption
- 300W
- Manufacturers Rated Lamp Life
- 20000hours
- Color temperature
- 8000K
03DIMMER1
- Linear Dimmer from 0-100%
04STROBE1
- Electronic Strobe 0-25FP.S. with pulse macors
05PRISM1
- 1pc 4-facet circular prism
06EFFECT WHEEL2
- 1 fire effect wheel(bi-directional rotation with variable speeds)
- Fire gobo exchangeable
Show the full specificationHide the rest of the specification9 more groups · 24 values
07FOCUS1
- DMX linear focus
08ZOOM1
- DMX linear zoom
09BEAM ANGLE1
- Beam angle (1/2θpeak)
- linear focus 7°~ 45°(open hole)
10FROST1
- 1frost filter
11CONTROL5
- International standard DMX512 signal control protocol
- DMX512 5pin interfaces
- 14channels in short mode and 19channels in standard mode
- Master/Slave synchronized Mode
- Stand alone mode, preset mode, user memory
12OTHER FUNCTIONS6
- Color touch screen and its brightness adjustable
- DMX 512 port for firmware upgrade, a convenient and quick way for firmware upgrade via DMX cable
- Over temperature protection
- Fixture time, DMX512 channel value and software version will be displayed
- Display can be inverted
- Quick replacement of gobos
13HOUSING1
- Cast Aluminum , high temperature resistant/anti-UV ABS, IP65
14NET WEIGHT3
- 21.4Kg
- OPERATION TEMPERATURE
- Maximum ambient temperature 45 °C
- 【Version
- 20240524】
15General5
- 1pc color wheel(6colors+CTO+Open),
- Half color, bi-directional rainbow effect with variable speeds
- Stepping /linear color selection
- 1pc of rotating gobo wheel
- 6 gobos +open
- Shake with variable speeds, bi-directional scrolling with variable speeds
