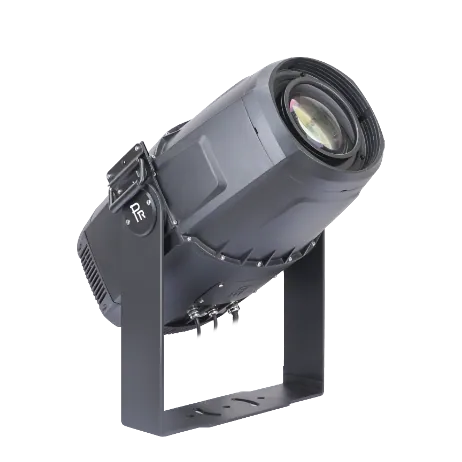

PR Lighting TANGO 750 Framing, product photo 1 of 4 — Fig. 01 / 04 · manufacturer’s images

PR Lighting · Architectural lighting

PR Lighting TANGO 750 Framing PR-6630A

Name: PR Lighting TANGO 750 Framing PR-6630A
Brand: PR Lighting

ModelPR-6630A

PriceOn request

Request a quotation Discuss your project

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:57

PR Lighting TANGO 750 Framing1:57

02SpecificationManufacturer's data · 21 groups · 42 values

What this product is, in numbers.

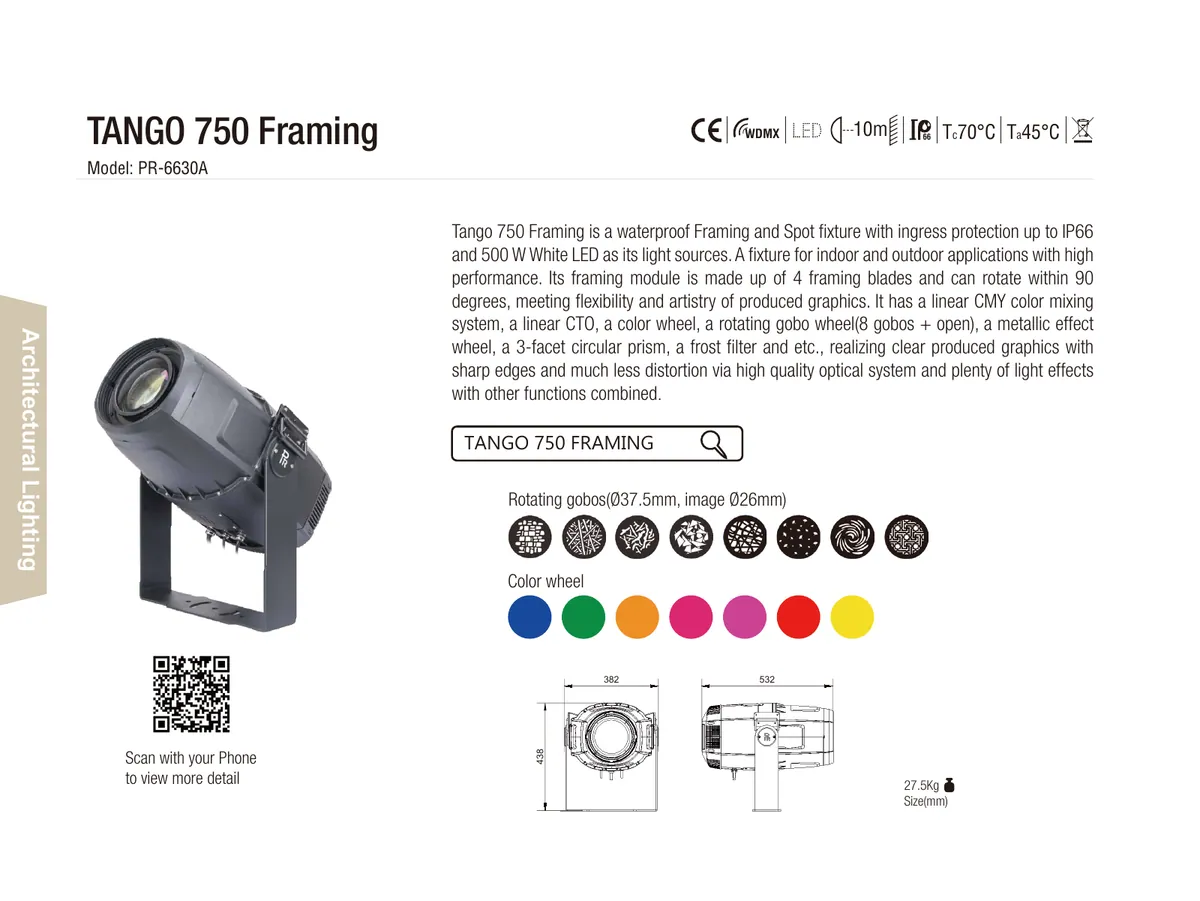

PDFDatasheetEN · 2 pages · 309 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input voltage1

200V~240V AC,50/60Hz

02Input power1

750W@220V AC

03Light source1

500W White LED(8000K, 20000hrs), Ra≥70(Optional: Ra≥90)

04CTO1

0-100% linear CTO

05Prism2

1pc of 3 facet circular prism

Bi-directional rotation with variable speeds and indexing function

06Frost1

1pc frost filter, linear frost effect( 0%-100%)

Show the full specificationHide the rest of the specification15 more groups · 35 values

07Effect wheel1

1pc, bi-directional rotation with variable speeds

08Focus1

DMX linear Focusing

09Dimmer1

0-100% Linear adjustment

10Strobe1

Electronic strobe, 0.3~25 F.P.S

11Beam angle2

linear zoom 6°-50° with 16 bit function (open hole)

linear zoom 5°-40° with 16 bit function (Gobo effective size)

12Control6

International standard DMX512, 5 pin interfaces

RDM control protocol

27 channels in short mode ,30 channels in standard mode

and 45 channels in extended mode

Master/Slave synchronized mode

Stand-alone mode

13Other function6

Total hours displayable

English and Chinese menus

Built-in sensor diagnostic system

Software versions displayable

Input signal isolation

Modular Structure for easy maintenance

14Housing and ingress protection1

High temperature ABS+ High tensile cast aluminum , IP66

15operation temperature3

Highest ambient temperature 45°C
Note: If the ambient temperature is below -20°C; reset a projector before pre-heating it for more than 30 minutes

16Tilt movement1

Tilt: 140°

17Net weight1

27.5Kg

18CMY1

CMY linear mixing system with macros

191 Color Wheels3

1 color wheel: 7 colors+ Open; Half color effect, rainbow effect with bi-directional and variable speeds,; Stepping/linear color changing

20Rotating Gobo5

1 Rotating Gobo Wheel: 8 replaceable gobos+ Open, Glass or Metal Gobo; Bi-directional Rotation with variable speeds; With Indexing Function; Gobo Shake Effect with Variable Speeds; Bi-directional Scrolling with Variable Speeds

21Framing2

1 framing module rotates between 0° and 90° and produces graphics of different shapes and sizes

4 framing blades can produce full curtain effect

03DescriptionManufacturer's description

What it is.

Tango 750 Framing is a waterproof Framing and Spot fixture with ingress protection up to IP66 and 500 W White LED as its light sources. A fixture for indoor and outdoor applications with high performance. Its framing module is made up of 4 framing blades and can rotate within 90 degrees, meeting flexibility and artistry of produced graphics. It has a linear CMY color mixing system, a linear CTO, a color wheel, a rotating gobo wheel(8 gobos + open), a metallic effect wheel, a 3-facet circular prism, a frost filter and etc.
