Sheet 05.992
PR Lighting · Other fixtures

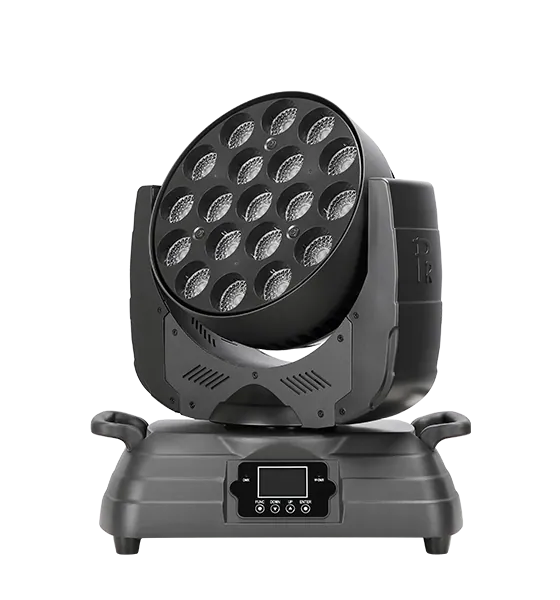

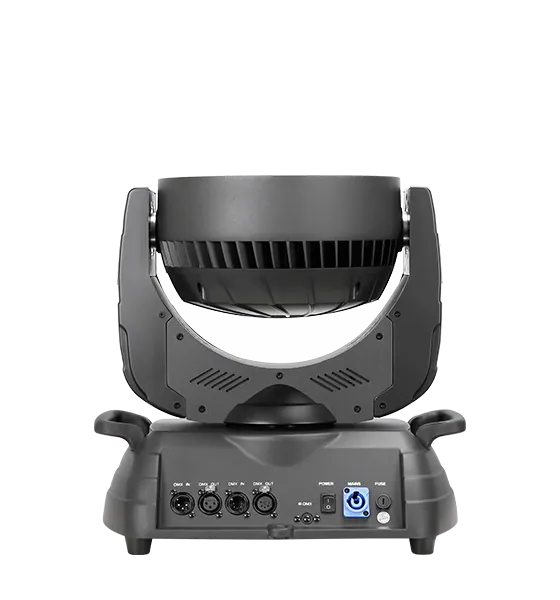

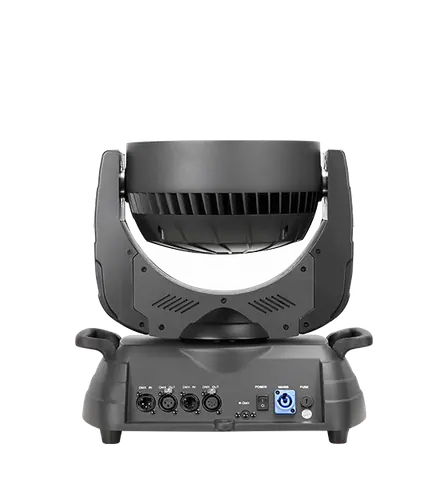

XLED 3019
ModelPR-8127
Containing 19x20W LEDs(RGBW 4 in 1), this unit is able to offer a variable beam ranging from 7° to 42° and beautiful wash field, making it ideal for all locations where perfection is required.
- Light source
- LED ENGIN 19x20W LEDs(RGBW,4 in 1),50,000 hrs
- Net weight
- 12.2kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
XLED 3019Price on requestRequest a quotation
01VideoManufacturer's video · 1:12
PR Lighting XLED 3019: the manufacturer's video
02SpecificationManufacturer's data · 16 groups · 34 values
What this product is, in numbers.
PDFDatasheetEN · 2 pages · 1.7 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Input Voltages1
- 100-240VAC,50/60Hz
02Power Consumption1
- 400W@220V
03Light Source1
- LED ENGIN 19x20W LEDs(RGBW,4 in 1),50,000 hrs
04Strobe1
- Electronic strobe,0-25 F.P.S,pulse strobe
05Dimmer1
- 0-100%linear adjustment
06Colors3
- R/G/B/W and color mixing,with macros
- Rainbow effect
- Linear color temperature correction from 2,700K to 10,000K
07Light Angle2
- Beam angle(1/2 peak)
- 7~42
- Field angle(1/10peak
- 17°~60°
08Control4
- International DMX512,3 pins and 5 pins interface
- RDM control protocol
- Standard mode 12 channels and extended mode 20 channels
- Master-slave mode,self-test mode,manual test mode
09Head Movement2
- Pan540°,tilt270°with auto position correction
- Swap and invert functions of pan and tilt
10Other Functions5
- Adjustable pan tilt speed
- LCD display and its brightness adjustable
- Lamp temperature project's use time display
- DMX512 wireless receiver
- DMX512 wireless transmitter(optional)
11Physical2
- Housing
- high temperature,ABS+die-casting aluminum,IP20
- Ambient working temperature
- -20°C-~40°C
12Weight1
- Net weight
- 12.2kg
13Packaging2
- Standard
- carton 455x450x420(mm)
- Optional
- flight case 785x440x655(mm),2 in 1
14Accessories5
- G clamp,2 pcs
- 5 pins XLR connector,1 set
- Safety cord,1 pc
- Power cord,1 pc
- Optional
- clamp,2 pcs
15Color System2
- R/G/B/W and color mixing,with macros
- Rainbow effect
16Color Temperature1
- Linear color temperature correction from 2,700K to 10,000K
Show the full specificationHide the rest of the specification0 more groups · 0 values
03Documents5 files · 3.3 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
Certificates01
Drawings01
Software and data files01
