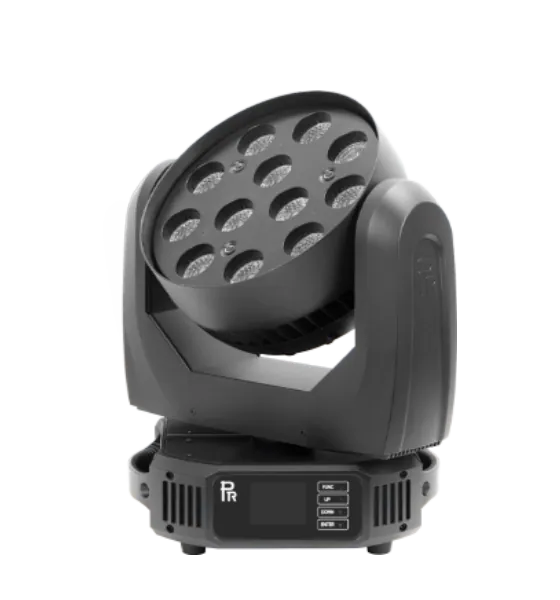

XLED 4012

ModelPR-8122

XLED 4012 is a LED fixture using 12 pcs of 40W RGBW LED as its light source and has the beam angle between 7° and 42°.

Light source: LED lamp(40W RGBW, 12pcs, 50000hrs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 16 groups · 45 values

What this product is, in numbers.

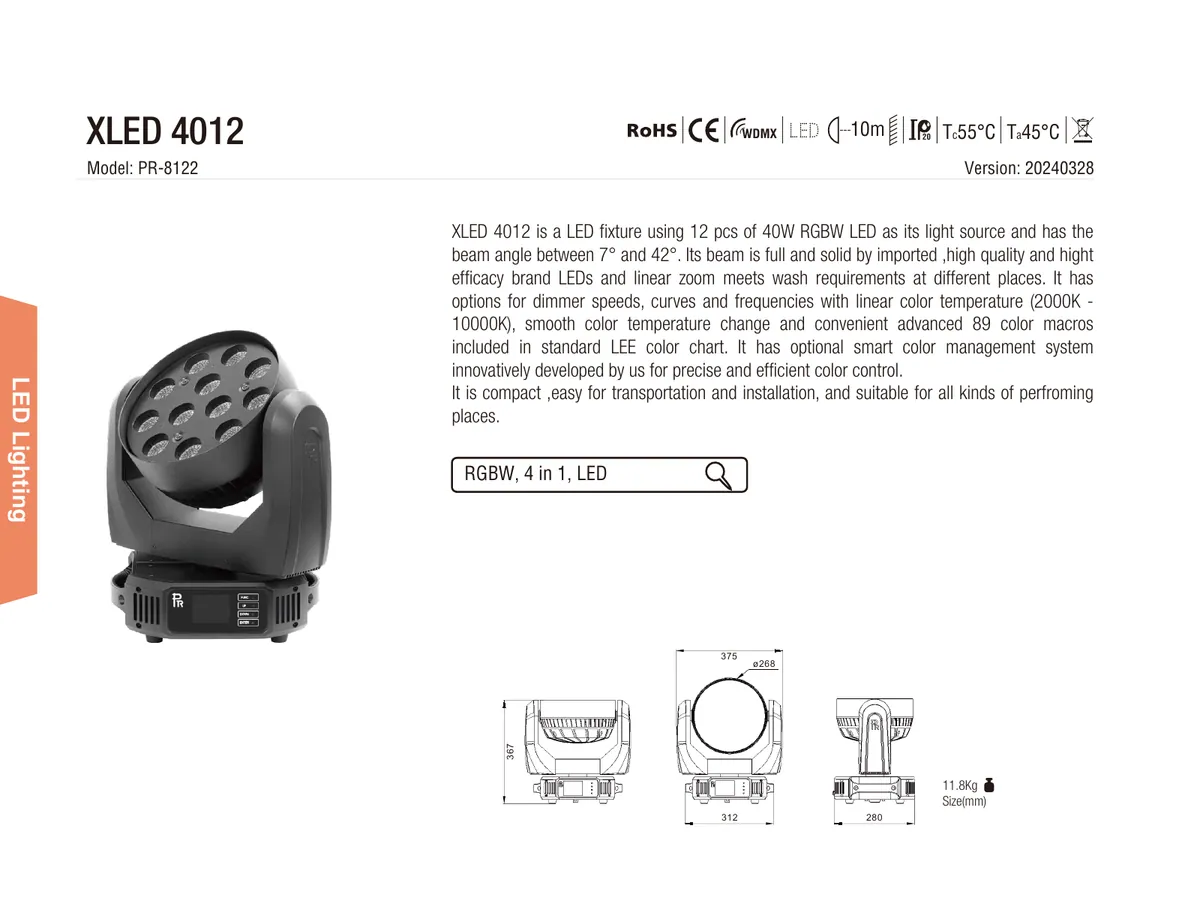

PDFDatasheetEN · 2 pages · 209 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input Voltage1

100V~240V AC,50/60Hz

02Input Power2

550W@220V
Power factor: PF〉0.9

03Light Source1

LED lamp(40W RGBW, 12pcs, 50000hrs)

04Pan And Tilt4

Pan: 540°(16 bit control)
Tilt: 270°(16 bit control); Pan and Tilt invertible and; swappable with auto-positioning function

05Colors3

RGBW linear color mixing with built-in macros
Color Temperature macros: optional 2700K,3000K,3500K,4000K,4500K,5000K,5700K
Color Macros: 89 color options included in standard color chart

06Dimmer4

Electronic dimmer,0-100% linear(16Bit control)

3 dimmer speeds

4 dimmer curves

Dimmer frequency 1.2K~2.5K adjustable for high speed 4K video cameras

Show the full specificationHide the rest of the specification10 more groups · 30 values

07Color Temperature1

Color Temperature 2000K-10000K,inear control

08Strobe1

Electronic strobe, 0.3-25 F.P.S.,with built-in pulse strobe

09Beam Angle2

Beam Angle(1/2 peak)θ1/2: 7 °~42°
Field Angle(1/10 Peak)θ: 17°~60°

10Control6

International Standard DMX512 signal, 5 pin DMX512 interfaces

RDM protocol

10 channels in short mode,18channels in standard mode

and 20 channels in extended mode

Master/slave mode

Stand-alone mode, Preset mode, Single Scene mode

11Other Functions12

LCD Display English/Chinese menus,

Display auto-lock while standby to avoid unintended touch

DMX Wireless control(Optional)

Pan and Tilt speeds adjustable

Pan and Tilt invertible and swappable

Over temperature protection

Fixture time and DMX 512 channel value displayed

Software version displayed, display invertible

Sensor diagnostic system

Intelligent fan cooling system

Input signal insulated

Firmware upgrade via DMX cable

12Housing1

High temperature ABS, IP20

13Weight1

11.8Kg

14Ambient Temperature1

Ambient temperature 45°C at maximum

15Accessories4

G Clamp 2 Pcs

XLR Cable 1 Pc With plug and socke

Safety Cord 1 Pc

User Manual 0 Pc QR Code

16General1

SCMS(optional)

02DescriptionManufacturer's description

What it is.

XLED 4012 is a LED fixture using 12 pcs of 40W RGBW LED as its light source and has the beam angle between 7° and 42°. Its beam is full and solid by imported ,high quality and hight efficacy brand LEDs and linear zoom meets wash requirements at different places. It has options for dimmer speeds, curves and frequencies with linear color temperature (2000K - 10000K).
