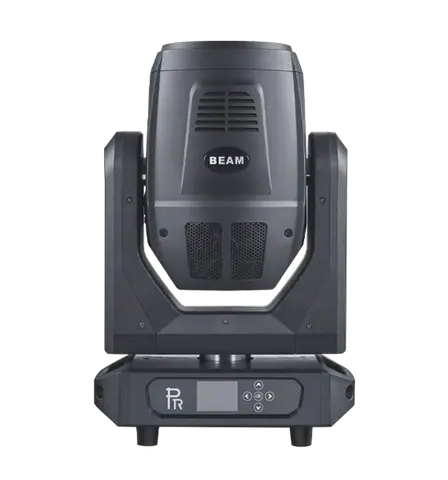

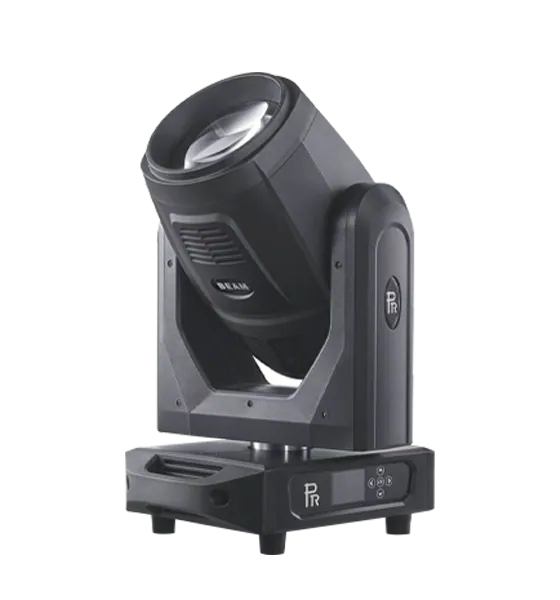

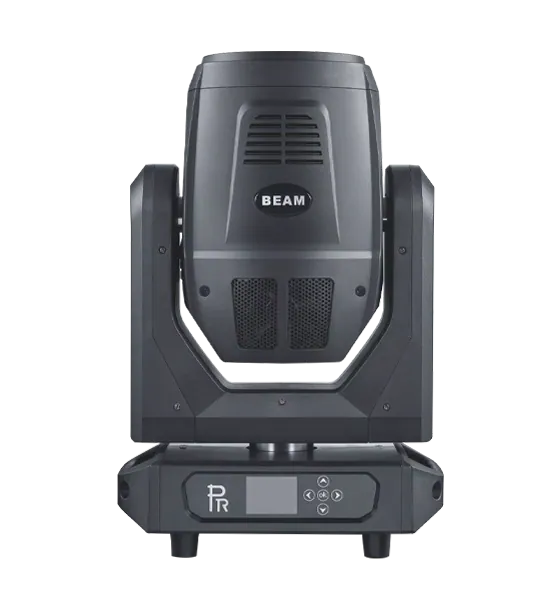

XR 300 Beam

ModelPR-2244

Light source: Lamp Sliver 300LL( 7800K, 3000hrs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 15 groups · 21 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input Voltage1

100V~240V AC,50/60Hz

02Input Power1

450W@230V

03Light Source1

Lamp Sliver 300LL( 7800K, 3000hrs)

04Gobos1

1 fixed gobo wheel: 17gobos+open

05Colors1

1 color wheel: 14 colors+open

06Prism/Frost2

1 8-facet linear prism and one 16-facet prism,

bi-directional rotation from slow to fast , both can be overlapped

07Focus1

DMX linear focus

08Dimmer /Strobe2

Strobe at variable speeds(15 F.P.S at maximum)

0-100% linear dimmer

09Head Movement1

Pan 540°, Tilt 270° with 16 bit control

10Beam Angle1

0°~ 2°

11Control2

DMX 512 protocol, 5-pin interface

14 channels in short mode and 16channels in standard mode

12Housing1

High temperature and anti-UV ABS and aluminum , IP20

13Net Weight1

17Kg

14Operation Temperature1

Ambient temperature at maximum: 45°C

15Accessories4

Power line 1 Pc

Certificate 1 Pc

Foldable clamp 2 Pc

User manual 1Pc( QR code)

02DescriptionManufacturer's description

What it is.

XR 300 BEAM is the latest incredible fixture from PR Llighting. It has high efficiency and illuminance. Equiped with a color wheel including 14 colors+open, it creates gorgeous pure beams. One 8-facet linear prism and one 16-facet prism can be overlapped. One fixed gobo wheel with 17 gobos and open. The illumination delivers a zoom range of 0°to 2°with 0-100% linear dimmer. XR 300 beam is suitable for a wide variety of integration applications.
