PR Lighting XR 380 Beam PR-2345
ModelPR-2345
XR 380 Beam is an energy saving and environmentally friendly Beam fixture with low power consumption, high luminous efficacy. It has a solid beam with sharp edge, long projecting distance and luminance up to 480,000 lux at distance of 10 meters.
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
XR 380 BeamPrice on requestRequest a quotation
01VideoManufacturer's video · 1:58
PR Lighting XR 380 Beam: the manufacturer's video
02SpecificationManufacturer's data · 10 groups · 32 values
What this product is, in numbers.

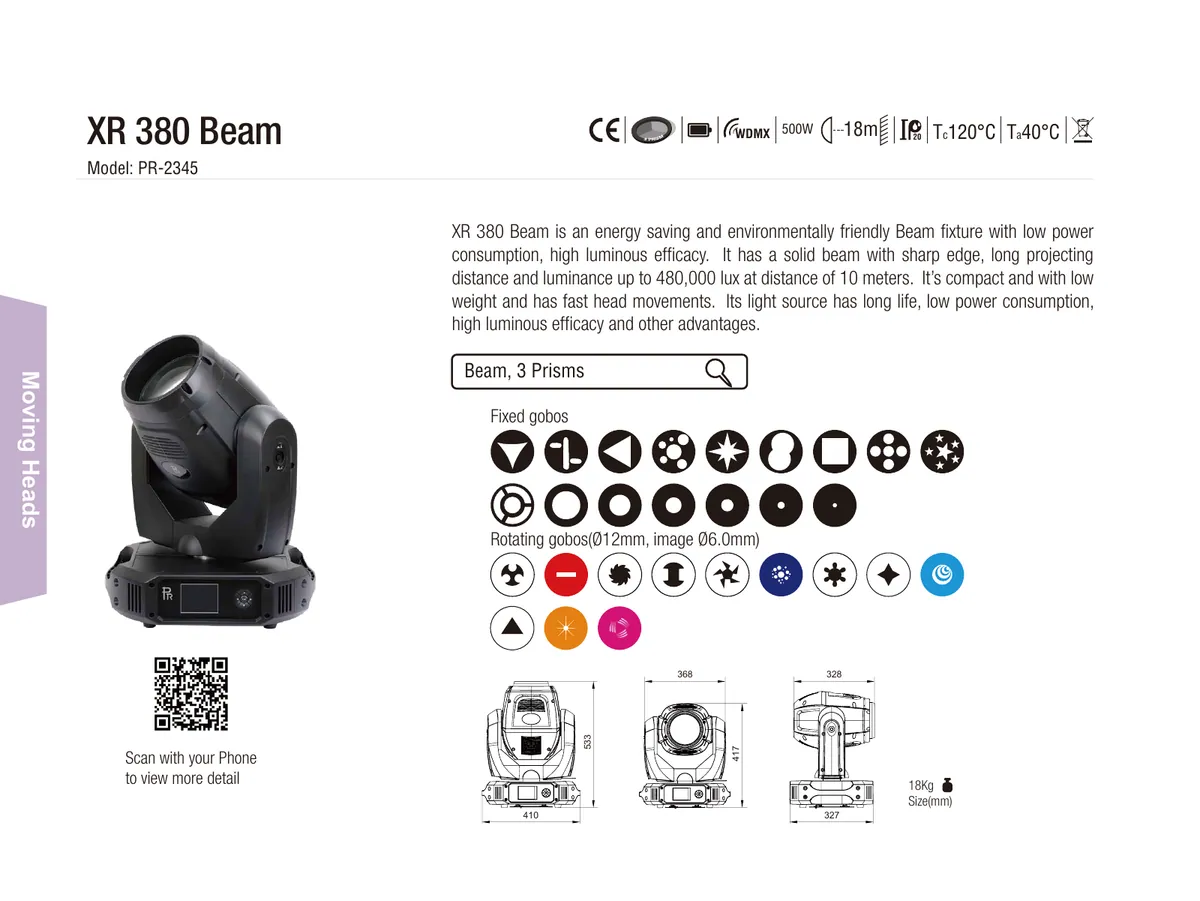

PDFDatasheetEN · 2 pages · 415 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01ELECTRIC PARAMETERS7
- Input voltage 100V~240VAC,50/60Hz
- Input power 550W@100V
- 500W@220V
- Powerfactor
- PF>0.9
- LAMP
- Phlips MSD Platinum Flex 300S
- ColourTemperature 7800K
- ManufacturersRatedLampLife 6000hrs (Reference the Spec. ofLightsource)
02PRISM/EFFECTWHEEL2
- 3Prisms
- standard : individual 8-facet prism;16-facet prism+ linear prism+ Frost+ Open (bi-directionalrotation)
- (Optional 3-16 facet prismor gradient prism)
03FOCUS3
- 0-100% linearly adjustable by DMX
- STROBE
- Double shutter blades, 0.3~20 F.P.S
- HEADMOVEMENT
- Pan 540º,Tilt 270º with auto position correction
04BEAMANGLE1
- 0°~2.3°, Linear zoom
05CONTROL3
- DMX512 and 5 pin interfaces
- 17channelsin shortmode, 19channelsin standardmode 21 channelsin extendedmode
- Adjustablemode
06OTHER FUNCTIONS4
- AdjustablePan&Tiltspeed
- Fixture and lamp usage time display
- Modular construction for easymaintenanceDMX512wirelessreceiver
- DMX512wirelesstransmitter(optional)
Show the full specificationHide the rest of the specification4 more groups · 12 values
07HOUSING1
- Composite plastic,IP20
08WEIGHT1
- 18 Kg
09RUNNINGTEMPERATURE2
- Ambienttemperature 40°Catmaximum
- 【Version
- 20230817】
10General8
- 1ColorWheel
- 13 diachronic colorfilters pluswhite
- variable speed and bi-directionalrainbow effect
- linear color changing is available
- 1 Fixed gobowheel
- 16 interchangeable gobos+ white
- Shaking and bi-directional wheelscrolling at variable speeds
- RotatingGoboWheel
- 1Rotating gobowheel
- 12 gobos+ Open
- Shaking and bi-directional wheelscrolling at variable speeds
- Gobo changeable
03DescriptionManufacturer's description
What it is.
XR 380 Beam is an energy saving and environmentally friendly Beam fixture with low power consumption, high luminous efficacy. It has a solid beam with sharp edge, long projecting distance and luminance up to 480,000 lux at distance of 10 meters. It’s compact and with low weight and has fast head movements. Its light source has long life, low power consumption, high luminous efficacy and other advantages.
04Documents3 files · 6.1 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
Software and data files01
