PR Lighting · Hybrid fixtures

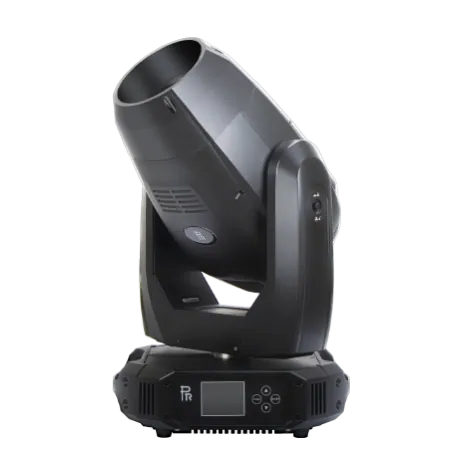

XRLED 700-W BWS

Name: PR Lighting XRLED 700-W BWS PR-8173
Brand: PR Lighting

ModelPR-8173

XRLED 700-W BWS is a Three in One(Beam, Spot and Wash modes) fixture using 350W LED engine. Super wide front lens 148mm, wide and linear beam angle 4°~40°, up to 30000lux at distance of 10m.

PriceOn request

Request a quotation Discuss your project

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 0:57

PR Lighting XRLED 700-W BWS0:57

02SpecificationManufacturer's data · 22 groups · 50 values

What this product is, in numbers.

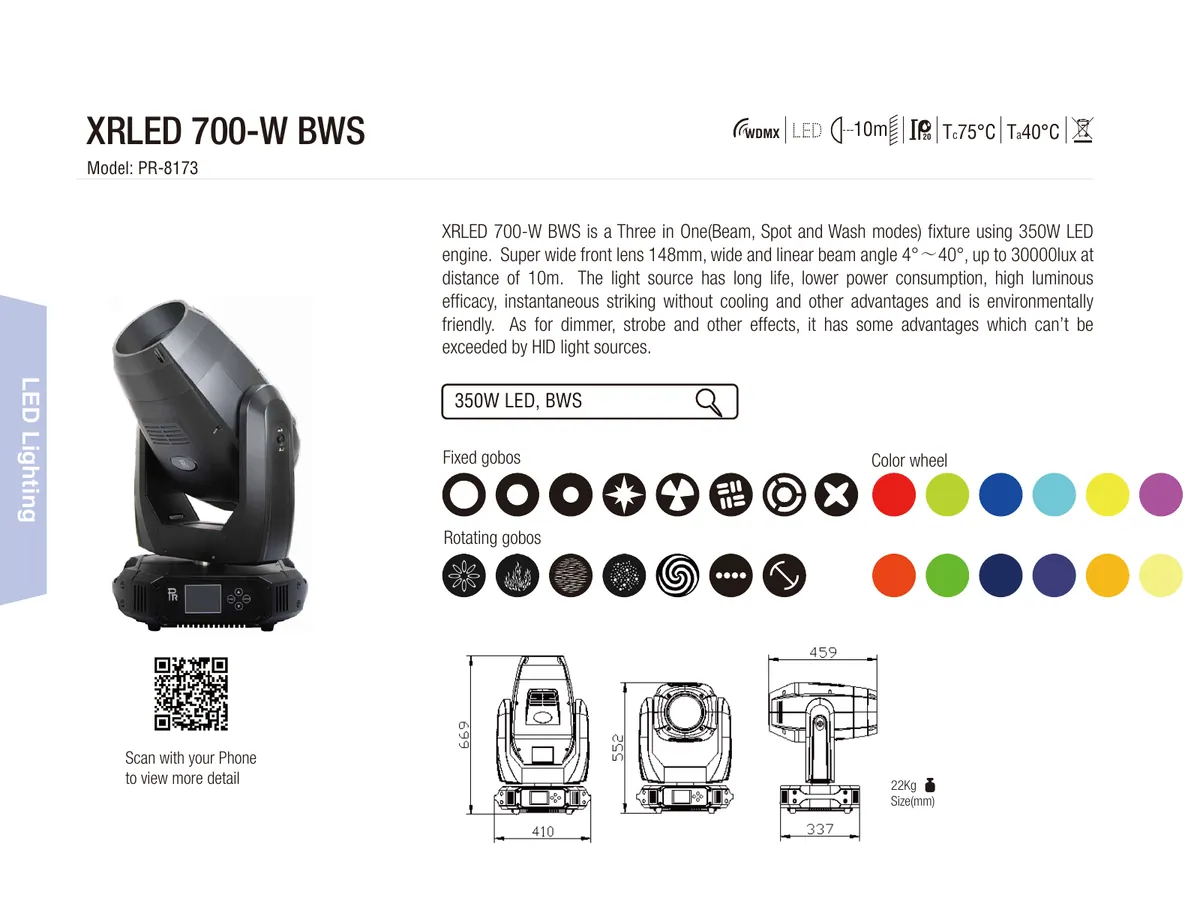

PDFDatasheetEN · 2 pages · 260 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input voltages1

100V~240V AC, 50/60Hz

02Input Power1

550W @ 220V

03Light source1

350W, White LED module, CRI: Ra≥70

04CTO1

Linear CTO (0-100%)

05Prism2

1pc, 3-facet circular prism, bi-directional rotation at variable speeds,

indexble. Other optional prisms are available.

06Frost1

0-100% linear with 1pc frost filter

Show the full specificationHide the rest of the specification16 more groups · 43 values

07Focus1

DMX linear focus

08Zoom1

DMX linear focus

09Iris1

5-100% linear with macros

10Strobe3

Electronic strobe 0.2~25 F.P.S, optional pulse,

synchronized or non-synchronized strobe at slow,

medium and fast speeds

11Head movement1

Pan 540º, Tilt 270º with auto position correction

12Beam angle3

Beam/Spot Mode: 4°- 40° Linear Adjustment
Wash Mode: 5°- 45° Linear Adjustment; With 16 bit control function

13Fan mode1

Standard mode and theater modes. Theater mode is quiet mode

14Control8

DMX512, 5 pin interfaces

RDM protocol and DMX wireless control(optional sACN protocol)

Ethernet Protocol

25channels in short mode, 30channels in standard mode,

35channels in extended mode

Master/Slave mode

Stand-Alone mode

Master mode

15Other functions13

Adjustable Pan & Tilt speeds

Pan and Tilt invertible and swappable

Lamp’ s and fixture’ s hours displayed

Color touch Chinese/English screen, display invertible and touch keys

Intelligently controllable fans

Sensor diagnostic system

Input signal isolated, modular construction for easy

maintenance, DMX channel voltages monitoring

Non-touchable magnetic sensor for positioning,

signal feedback, absolute position memory, auto-positioning

after power-off or DMX signal disrtuption

Firmware upgrade via DMX cable

Optional ethernet port

16Housing1

High temperature ABS, IP20

17Weight1

22Kg

18Ambient temperature1

Temperature at maximum 40°C

19CMY1

CMY color mixing system with macros

201 Color Wheels3

1 Color wheel: 12colors+ Open,; rainbow effect with bi-directional and variable speeds,; Stepping/linear color changing

21Fixed Gobo2

1 Fixed gobo wheel: 7 gobos +Animation Effect+Open; Bi-directionally rotatable, and shakable at variable speeds

22Rotating Gobo2

1 Rotating gobo wheel: 7 Rotating Gobos +Open; Bi-directionally rotatable, and shakable at variable speeds

03DescriptionManufacturer's description

What it is.

XRLED 700-W BWS is a Three in One(Beam, Spot and Wash modes) fixture using 350W LED engine. Super wide front lens 148mm, wide and linear beam angle 4°~40°, up to 30000lux at distance of 10m. The light source has long life, lower power consumption, high luminous efficacy, instantaneous striking without cooling and other advantages and is environmentally friendly. As for dimmer, strobe and other effects, it has some advantages which can’t be exceeded by HID light sources.

04Documents2 files · 5.3 MB
