Sheet 05.739

PR Lighting · Hybrid fixtures

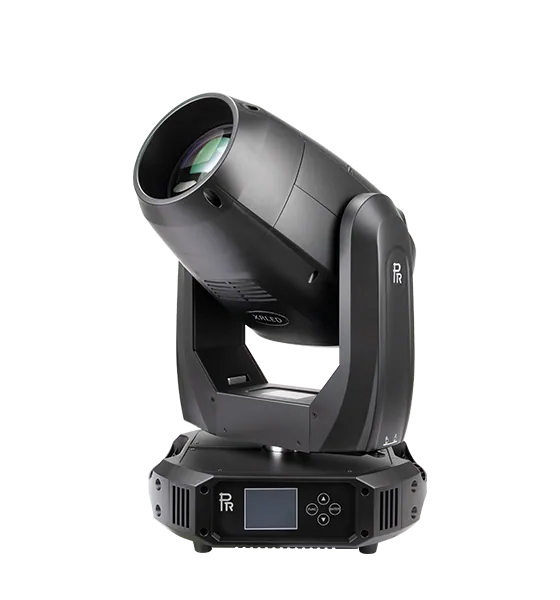

XRLED 700-W BWSF

Name: PR Lighting XRLED 700-W BWSF PR-8174
Brand: PR Lighting

ModelPR-8174

PriceOn request

Request a quotation Discuss your project

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:05

PR Lighting XRLED 700-W BWSF2:05

02SpecificationManufacturer's data · 24 groups · 53 values

What this product is, in numbers.

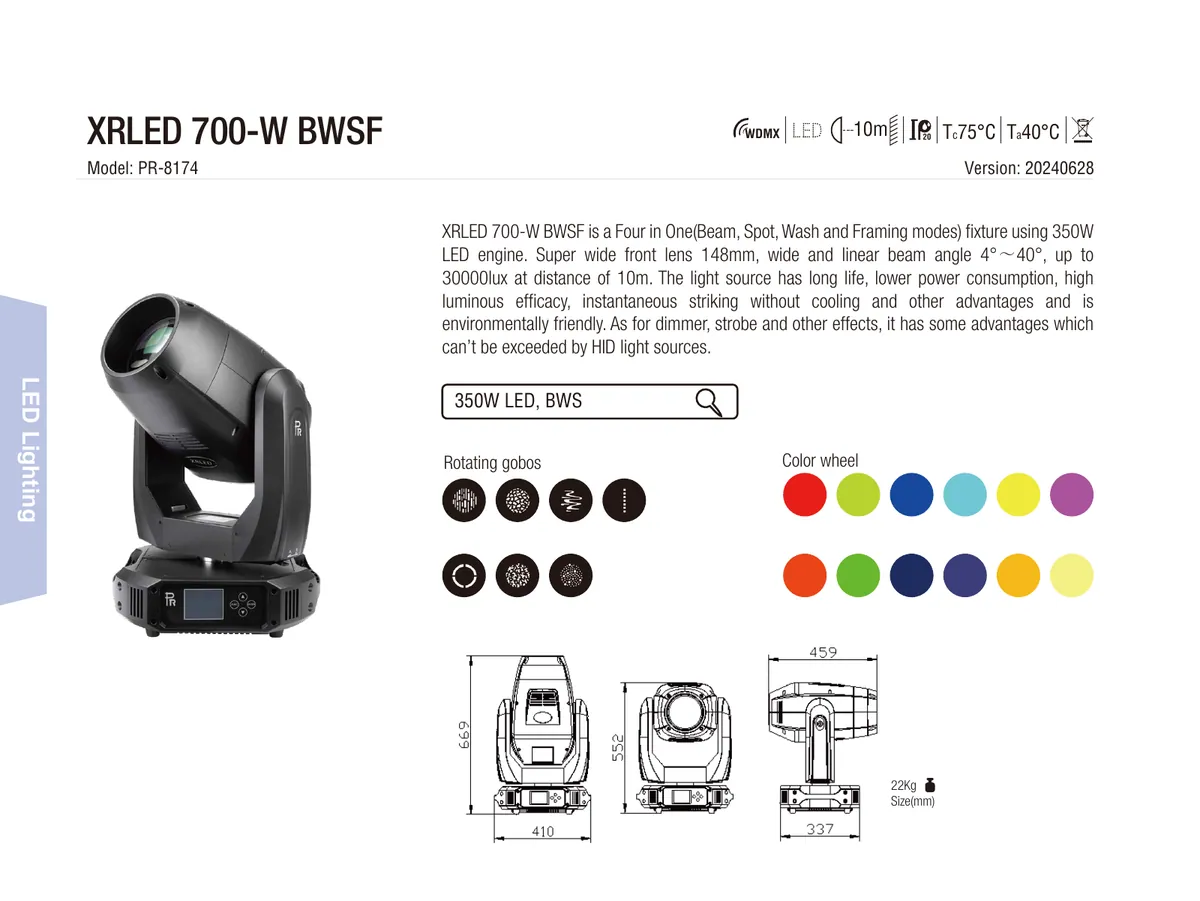

PDFDatasheetEN · 2 pages · 242 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input voltages1

100V~240V AC, 50/60Hz

02Input Power1

550W @ 220V

03Light source1

350W, White LED module,(9000K, 20000hour, CRI: Ra≥70)

04CTO1

Linear CTO system(0-100%, 9000K-1800K)

05Prism2

1pc, 3-facet circular prism, bi-directional rotation at variable speeds

indexing. Other optional prisms are available

06Frost1

Wash effect

Show the full specificationHide the rest of the specification18 more groups · 46 values

07Focus1

DMX linear focus

08Zoom1

DMX linear focus

09Dimmer1

0-100% linear with dimming

10Iris1

5-100% linear with macros

11Strobe3

Electronic strobe 0.2~25 F.P.S, optional pulse,

synchronized or non-synchronized strobe at slow,

medium and fast speeds

12Head movement1

Pan 540º, Tilt 270º with auto position correction

13Beam angle3

Beam/Spot Mode: 4°- 40° Linear Adjustment
Wash Mode: 5°- 45° Linear Adjustment; With 16 bit control function

14Fan mode1

Standard mode and theater modes. Theater mode is quiet mode

15Control8

DMX512, 5 pin interfaces

RDM protocol and DMX wireless control(optional sACN protocol)

Ethernet Protocol

35channels in short mode, 40channels in standard mode

53channels in extended mode

Master/Slave mode

Stand-Alone mode

Master mode

16Other functions10

Adjustable Pan & Tilt speeds

Pan and Tilt invertible and swappable

Lamp’ s and fixture’ s hours displayed

Color touch Chinese/English screen, display invertible and touch keys

Intelligently controllable fans

Sensor diagnostic system

Input signal isolated, modular construction for easy maintenance

DMX channel voltages monitoring

Non-touchable magnetic sensor for positioning

signal feedback, absolute position memory, auto-positioning

17Housing1

High temperature ABS, IP20

18Weight1

22.6Kg

19Ambient temperature1

Temperature at maximum 45°C

20General4

after power-off or DMX signal disrtuption; Firmware upgrade via DMX cable; Optional ethernet port
【Version: 20240628】

21CMY1

CMY color mixing system with macros

221 Color Wheels3

1 Color wheel: 12colors+ Open,; rainbow effect with bi-directional and variable speeds,; Stepping/linear color changing

23Rotating Gobo2

1 Rotating gobo wheel: 7 Rotating Gobos +Open; Bi-directionally rotatable, and shakable at variable speeds

24Framing3

1 Framing Module: 4 Framing Blades; Framing Module continual rotation with many graphics of different sizes and shapes; 4 Framing blades to make full curtain effect

03DescriptionManufacturer's description

What it is.

XRLED 700-W BWSF is a Four in One(Beam, Spot, Wash and Framing modes) fixture using 350W LED engine. Super wide front lens 148mm, wide and linear beam angle 4°~40°, up to 30000lux at distance of 10m. The light source has long life, lower power consumption, high luminous efficacy, instantaneous striking without cooling and other advantages and is environmentally friendly. As for dimmer, strobe and other effects, it has some advantages which can’t be exceeded by HID light sources.
